Vehicle Exploded View - APRILIA SCARABEO 125 E3 Mot Piaggio 2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

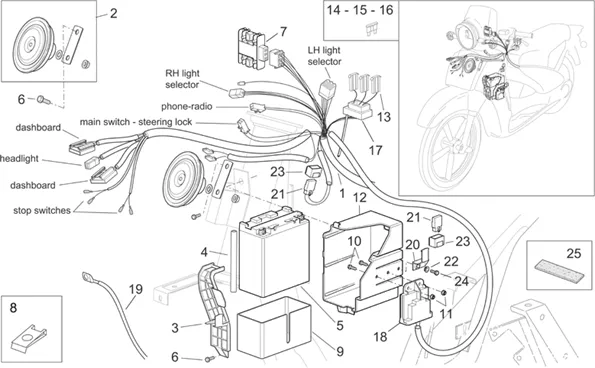

Chassis : 28.43 CIRCUIT ELECTRIQUE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/612/Scarabeo_125_E3_Mot_Piaggio_2006_28.43.PNG)
1 |
AP8127616 - CABLAGGIO PRINCIPALE More informationQuantity required : 1 |
|||||||||
|
2 |
AP8127645 - CLAXON More informationQuantity required : 1 |
|||||||||
|
3 |
AP8139268-COVER BATTERY More informationQuantity required : 1 |
|||||||||
|
4 |
896570-HOSE More informationQuantity required : 1 |
|||||||||
|
5 |
AP8112920-BATTERY YUASA 12V-12 AH YB12 AL-A2 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
6 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/2/1/7/5/3/img/221753.jpg)
7 |
REGULATEUR MAXI SCOOTER OEM PIAGGIO 125 BEVERLY, FLY, LIBERTY, MP3, X7, X8, X9, X-EVO, VESPA GTS, PRIMAVERA, VESPA SPRINT, VESPA LX/APRILIA 125 ATLANTIC, MOJITO, RS4/GILERA 125 NEXUS-58090R6 More informationQuantity required : 1 |
|||||||||
|
7 |
VOLTAGE REGULATOR- "PIAGGIO GENUINE PART" 125 BEVERLY, FLY, LIBERTY, MP3, X7, X8, X9, X-EVO, VESPA GTS, PRIMAVERA, VESPA SPRINT, VESPA LX/APRILIA 125 ATLANTIC, MOJITO, RS4/GILERA 125 NEXUS -58090R5 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
8 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 4 |
|||||||||
|
9 |
AP8131838-BO? TIER BATTERY More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
10 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
11 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
|||||||||
|
12 |
AP8168882 - SCATOLA PORTABATTERIA More informationQuantity required : 1 |
|||||||||
|
13 |
AP8120754-RUBBER P-FUSIBLES More informationQuantity required : 3 |
|||||||||
|
14 |
CM225607-FUSIBLE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/9/9/img/73399.jpg)
15 |
BLADE FUSE STANDARD 15A OEM PIAGGIO COMMON A LA RANGE-CM225715 More informationQuantity required : 2 |
|||||||||
|
16 |
495357 - FUSIBLE More informationQuantity required : 2 |
|||||||||
|
17 |
AP8144091 - CAOUTCHOUC P-FUSIBLES; More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/1/3/img/67213.jpg)
18 |
CDI UNIT "PIAGGIO GENUINE PART" 125 X7, CARNABY/APRILIA 125-250 ATLANTIC, SPORT-CITY, 125 SCARABEO -58135R More informationQuantity required : 1 |
|||||||||
|
18 |
639795-DISPOSITIF ELECTRON More informationQuantity required : 1 |
|||||||||
|
19 |
AP8127431 - CAVO MASSA BATTERIA-MOTORE More informationQuantity required : 1 |
|||||||||
|
20 |
AP8234094-BRACKET P-FUSIBLES More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/9/img/72329.jpg)
21 |
RELAIS 12V/30A OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8224462 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
22 |
BUSH/SPACER (6) OEM PIAGGIO COMMON A LA RANGE-AP8121032 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/7/img/72277.jpg)
23 |
SANGLE RUBBER DE BLOC OEM PIAGGIO COMMON A LA RANGE-AP8220283 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
24 |
SCREW FLANGE TH (5X15) OEM PIAGGIO COMMON A LA RANGE-AP8152273 More informationQuantity required : 1 |
|||||||||
|
25 |
AP8117040-EPONGE ADHÉS. BLACK More informationQuantity required : 1 |
|||||||||
