Vehicle Exploded View - APRILIA SCARABEO 2T 100 mot Minarelli 2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

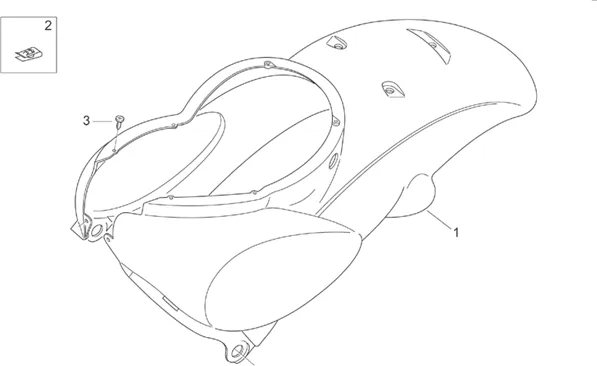

Chassis : 28.16 CARROSSERIE ARRIÉRE I - QU.CAR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/623/Scarabeo_100_2T_mot_Minarelli_2000_28.16.PNG)
1 |
AP8148796 - Q.CAREN. BLEU CHIPS More informationQuantity required : 1 |
||||||
|
1 |
AP8148811 - Q.CAREN. NOIR CHAMOIS More informationQuantity required : 1 |
||||||
|
1 |
AP8149097 - QUEUE, ARGENT THRILLER More informationQuantity required : 1 |
||||||
|
1 |
AP8248432 - QUEUE, NOIR TRANS. More informationQuantity required : 1 |
||||||
|
1 |
AP8249424 - Q. ROUGE MIR?; More informationQuantity required : 1 |
||||||
|
1 |
AP8249634 - Q.CAREN. BLEU REEF; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/5/7/img/72157.jpg)
2 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-AP8202449 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
3 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 6 |
