Vehicle Exploded View - APRILIA SCARABEO 2T 100 mot Minarelli 2000 APRILIA

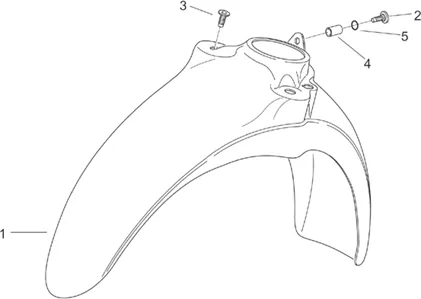

Chassis : 28.10 CARROSSERIE AV. VI - GARDE-BOUE AV
Carrosserie av. VI - Garde-boue AV
Search
AP8126760 - GARD-B AV ROUGE MIR?;

1
P2R reference P2R reference 47885
Maker reference Maker reference AP8126760

AP8126760 - GARD-B AV ROUGE MIR?;

More information

Quantity required : 1

Gard-b AV bleu reef;

1
P2R reference P2R reference
Maker reference Maker reference AP8126828

Gard-b AV bleu reef;

AP8126832 - GARD-B AV BLEU CHIPS;

1
P2R reference P2R reference 47901
Maker reference Maker reference AP8126832

AP8126832 - GARD-B AV BLEU CHIPS;

More information

Quantity required : 1

AP8126833 - GARD-B AV CHAMOIS;

1
P2R reference P2R reference 47902
Maker reference Maker reference AP8126833

AP8126833 - GARD-B AV CHAMOIS;

More information

Quantity required : 1

AP8126834 - GARDE-BOUE AV., NOIR TRANS.;

1
P2R reference P2R reference 47903
Maker reference Maker reference AP8126834

AP8126834 - GARDE-BOUE AV., NOIR TRANS.;

More information

Quantity required : 1

AP8126856 - GARDE-B AV. ARGENT THRILLER;

1
P2R reference P2R reference 47909
Maker reference Maker reference AP8126856

AP8126856 - GARDE-B AV. ARGENT THRILLER;

More information

Quantity required : 1

SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101

2
P2R reference P2R reference 214483
Maker reference Maker reference 2B014101

SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101

More information

Quantity required : 1

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302-

2
P2R reference P2R reference 71961
Maker reference Maker reference AP8152302
Replaced by référence Replaced by référence 214483

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302

More information

Quantity required : 1

SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298

3
P2R reference P2R reference 71957
Maker reference Maker reference AP8152298

SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298

More information

Quantity required : 1

SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120253

4
P2R reference P2R reference 71390
Maker reference Maker reference AP8120253

SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120253

More information

Quantity required : 1

WASHER PLATE (5, 5X15X1, 2) OEM PIAGGIO COMMON A LA RANGE

5
P2R reference P2R reference 71873
Maker reference Maker reference AP8150382

WASHER PLATE (5, 5X15X1, 2) OEM PIAGGIO COMMON A LA RANGE

More information

Quantity required : 1
