Vehicle Exploded View - APRILIA SCARABEO 2T 100 mot Minarelli 2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

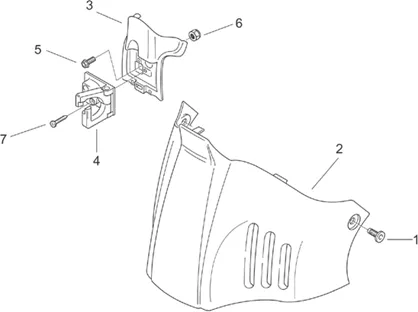

Chassis : 28.13 CARROSSERIE CENTRALE III - CV R. PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/623/Scarabeo_100_2T_mot_Minarelli_2000_28.13.PNG)
1 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
1 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 2 |
|||||||||
|
2 |
AP8148795 - COUV. INSPECT.BLEU CH. More informationQuantity required : 1 |
|||||||||
|
2 |
AP8148810 - COUV. INSPECT.CHAMOIS More informationQuantity required : 1 |
|||||||||
|
2 |
AP8149096 - COUVERCLE INSPECTION ARGENT T. More informationQuantity required : 1 |
|||||||||
|
2 |
AP8248431 - COUVERCLE INSP., NOIR TRANS. More informationQuantity required : 1 |
|||||||||
|
2 |
AP8249423 - COUV.CONT.P.ROUGE M.; More informationQuantity required : 1 |
|||||||||
|
2 |
AP8249633 - COUV. INSPECT.BLEU REEF; More informationQuantity required : 1 |
|||||||||
|
3 |
AP8148751 - COUVRE-CHARN.SELLE GRIS; More informationQuantity required : 1 |
|||||||||
|
4 |
AP8144301 - CROCHET DES.SELLE CPL More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
5 |
SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152272 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/9/img/71889.jpg)
6 |
NUT AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP8150451 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/0/img/71880.JPG)
7 |
SCREW (4, 2X25) OEM PIAGGIO COMMON A LA RANGE-AP8150423 More informationQuantity required : 2 |
|||||||||
