Vehicle Exploded View - APRILIA SCARABEO 2T 100 mot Minarelli 2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

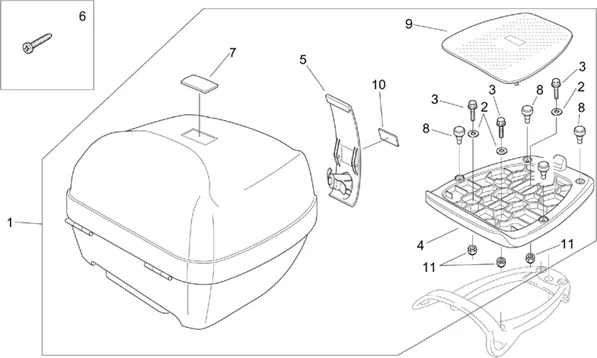

Chassis : 28.15 COFFRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/623/Scarabeo_100_2T_mot_Minarelli_2000_28.15.PNG)
1 |
AP8249932 - "COFFRE ""NEW CONCEPT"""; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
2 |
WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/5/img/71945.jpg)
3 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-AP8152282 More informationQuantity required : 3 |
||||||
|
4 |
AP8149120-PLATE ACCROCHAGE UNDERSEAT COMPARTMENT More informationQuantity required : 1 |
||||||
|
5 |
LOCK KIT- FOR TOP-CASE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER APRILIA -AP81041974- More informationQuantity required : 1 |
||||||
|
6 |
AP8590045-SCREW 3, 5X9, 5 More informationQuantity required : 1 |
||||||
|
7 |
AP8700107-ETIQUETTE ADHESIVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/4/7/2/img/61472.jpg)
8 |
BUTEE RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8706087 More informationQuantity required : 4 |
||||||
|
9 |
AP8149155 - COUVERCLE; More informationQuantity required : 1 |
||||||
|
10 |
AP8702024 - ?TIQUETTE ADH?SIVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
11 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150430 More informationQuantity required : 3 |
