Vehicle Exploded View - APRILIA RX 50 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

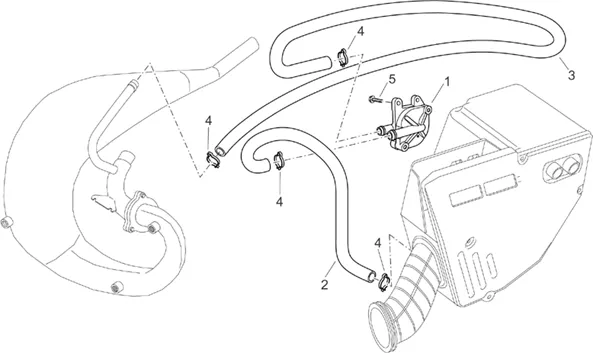

Chassis : 28.18 AIR SECONDAIRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/685/RX_50_2003-2004_28.18.PNG)
Search
1 |
AP8104745 - VALVOLA ARIA SECONDARIA More informationQuantity required : 1 |
||||||
|
2 |
AP8220650 - TUBO VALVOLA ENTRATA More informationQuantity required : 1 |
||||||
|
3 |
AP8220651 - TUBO VALVOLA USCITA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/3/img/71153.jpg)
4 |
CLAMP CLIC (15. 5X6. 6) OEM PIAGGIO COMMON A LA RANGE-AP8101586 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
5 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 2 |
