Vehicle Exploded View - APRILIA RX 50 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

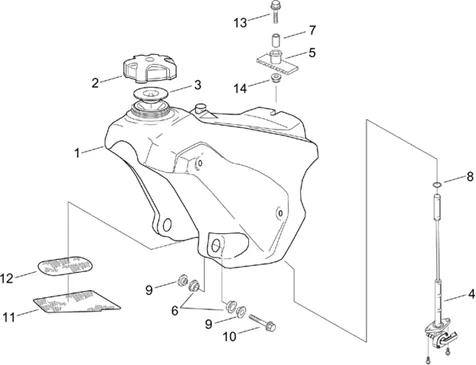

Chassis : 28.08 RÉSERVOIR ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/685/RX_50_2003-2004_28.08.PNG)
1 |
AP8258649 - RESERVOIR NOIR More informationQuantity required : 1 |
||||||
|
2 |
AP8220620 - BOUCHON More informationQuantity required : 1 |
||||||
|
3 |
AP8120683 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/4/2/7/img/55427.jpg)
4 |
FUEL TAP "PIAGGIO GENUINE PART" APRILIA 50 RX, SX 1991>2004 -AP8202086- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/2/3/img/46623.jpg)
5 |
RUBBER TANK OEM PIAGGIO COMMON A LA RANGE-AP8120663 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/2/img/71412.jpg)
6 |
AP8120675 - CAOUTCHOUC More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/4/img/71484.jpg)
7 |
SPACER (8X12X26) OEM PIAGGIO COMMON A LA RANGE-AP8121773 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/4/9/img/46649.jpg)
8 |
AP8120798 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/0/2/img/57002.jpg)
9 |
AP8221118-SPACER More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/9/6/img/97096.jpg)
10 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMMON A LA RANGE-AP8152342 More informationQuantity required : 2 |
||||||
|
11 |
AP8217030 - PROTECTION BR?LURE; More informationQuantity required : 1 |
||||||
|
12 |
SCHERMO PROTEZ.ANTICALORE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/2/img/71952.jpg)
13 |
SCREW FLANGE TH (8X40) OEM PIAGGIO COMMON A LA RANGE-AP8152290 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
14 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300 More informationQuantity required : 1 |
