Vehicle Exploded View - APRILIA RX 50 2003-2004
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

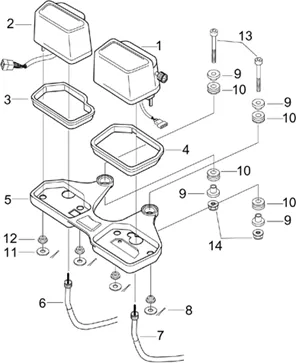

Chassis : 28.12 TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/685/RX_50_2003-2004_28.12.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/3/8/4/img/57384.jpg)
1 |
SPEEDOMETER "PIAGGIO GENUINE PART" APRILIA 50 PEGASO 1992>1994, RX, SX 2002>2004 -AP8224412 More informationQuantity required : 1 |
||||||
1 |
AP8224515 - CONTAKM More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/3/0/9/img/56309.jpg)
2 |
RPM GAUGE "PIAGGIO GENUINE PART" APRILIA 50 RX 2002>2004, PEGASO 1992>1994 -AP8212743 More informationQuantity required : 1 |
||||||
|
2 |
AP8224516 - CONTAGIRI More informationQuantity required : 1 |
||||||
|
3 |
AP8212272-GASKET COMPTE-TOURS More informationQuantity required : 1 |
||||||
|
4 |
AP8212273-GASKET INSTRUMENT CLUSTER KIL. More informationQuantity required : 1 |
||||||
|
5 |
AP8230667 - SUPPORT PEINT NOIRE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/5/3/1/img/56531.jpg)
6 |
AP8214081 - CABLE COMPTE-TOURS; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/5/2/5/img/56525.jpg)
7 |
TRANSMISSION SPEEDOMETER CABLE "PIAGGIO GENUINE PART" APRILIA 50 RX 1995>2004 -AP8214054- More informationQuantity required : 1 |
||||||
|
8 |
Goupille |
||||||
|
9 |
AP8220230 - DOUILLE More informationQuantity required : 4 |
||||||
|
10 |
RUBBER PANEL DE EDGE OEM PIAGGIO 1200 GRISO 2005 > 2016-AP8220228 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/7/img/71847.jpg)
11 |
WASHER PLATE (5X20X1. 5) OEM PIAGGIO COMMON A LA RANGE-AP8150255 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/3/img/71393.jpg)
12 |
RUBBER (7X15) OEM PIAGGIO COMMON A LA RANGE-AP8120405 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/8/img/71838.jpg)
13 |
SCREW BTR (6X50) OEM PIAGGIO COMMON A LA RANGE-AP8150202 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
14 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150430 More informationQuantity required : 2 |
