Vehicle Exploded View - APRILIA RX 125 E5+ 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

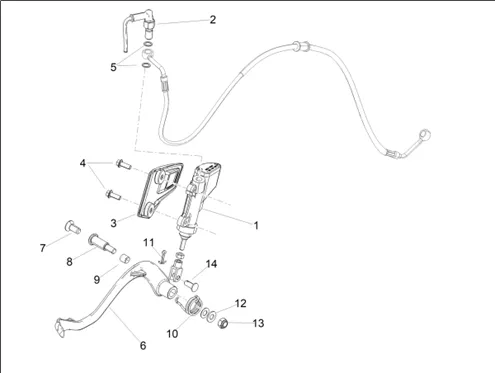

Système de freinage : 06.03 POMPE FREIN ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1314/RX_125_E5_2025_(EMEA)_06.03.png)
1 |
2R000490-MAITRE CYLINDER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/4/5/3/2/img/154532.jpg)
2 |
INTERRUPTEUR DE STOP OF BRAKE REAR OEM APRILIA 125 RX, SX 2018 >-2R000379 More informationQuantity required : 1 |
||||||
|
3 |
863552-TAPA BOMBA BRAKE TRAS. MUL125 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/3/7/img/64537.jpg)
4 |
SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-00H01501701 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/3/img/65723.jpg)
5 |
GASKET CUIVRE (10X16X1) BRAKE CALIPER OEM PIAGGIO COMMON A TOUTE LA RANGE-127927 More informationQuantity required : 5 |
||||||
|
6 |
LEVER/PEDAL OF BRAKE REAR OEM PIAGGIO 125 RX, SX APRILIA 2018 >-865585 More informationQuantity required : 1 |
||||||
|
7 |
2R000480-SCREW More informationQuantity required : 1 |
||||||
|
8 |
2R000475-STUD DE LEVER More informationQuantity required : 1 |
||||||
|
9 |
2R000476-GASKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/6/3/img/151763.jpg)
10 |
SPRING OF RETURN PEDAL OF BRAKE OEM PIAGGIO GILERA 50 SMT 2006 >, RCR/DERBI 50 SENDA 2000 >/APRILIA 50 SX, RX 2006 >-2B005020 More informationQuantity required : 1 |
||||||
|
11 |
2R000541-GOUPILLE More informationQuantity required : 1 |
||||||
|
12 |
2R000419-WASHER # 8. 4 - # 16 - 1. 6 More informationQuantity required : 1 |
||||||
|
13 |
2R000441-NUT More informationQuantity required : 1 |
||||||
|
14 |
2R000540-PIVOT More informationQuantity required : 1 |
