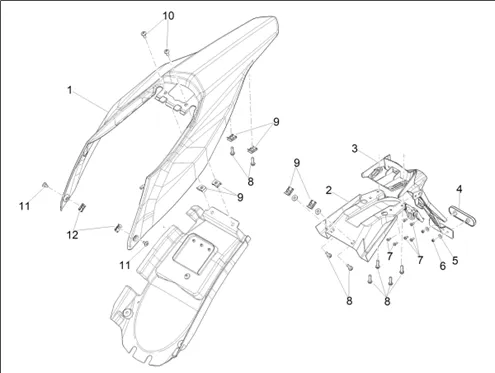

Vehicle Exploded View - APRILIA RX 125 E5+ 2025 (EMEA) APRILIA

Carrosserie : 02.14 CARROSSERIE POSTERIEURE
Carrosserie posterieure
Search
1B011946000W0N - QUEUE AR

1
P2R reference P2R reference 220594
Maker reference Maker reference 1B011946000W0N

1B011946000W0N-TAIL AR

More information

Quantity required : 1

1B011946000W0B - QUEUE AR BLANC

1
P2R reference P2R reference 220595
Maker reference Maker reference 1B011946000W0B

1B011946000W0B-TAIL AR WHITE

More information

Quantity required : 1

1B012298 - BAVOLET AR

2
P2R reference P2R reference 220596
Maker reference Maker reference 1B012298

1B012298-BAVOLET AR

More information

Quantity required : 1

1B011947 - BAVETTE ANTI-ECLABOUSSURES

3
P2R reference P2R reference 220597
Maker reference Maker reference 1B011947

1B011947-MUD FLAP ANTI-ECLABOUSSURES

More information

Quantity required : 1

CATADIOPTRE REAR OEM PIAGGIO COMMON A LA RANGE MOTO ET MAXI SCOOTER APRILIA-AP8124718

4
P2R reference P2R reference 71568
Maker reference Maker reference AP8124718

CATADIOPTRE REAR OEM PIAGGIO COMMON A LA RANGE MOTO ET MAXI SCOOTER APRILIA-AP8124718

More information

Quantity required : 1

WASHER PLATE (4X12) OEM PIAGGIO COMMON A LA RANGE-013763

5
P2R reference P2R reference 65360
Maker reference Maker reference 0137635

WASHER PLATE (4X12) OEM PIAGGIO COMMON A LA RANGE-013763

More information

Quantity required : 2

2R000438 - ECROU

6
P2R reference P2R reference 154440
Maker reference Maker reference 2R000438

2R000438-NUT

More information

Quantity required : 2

SCREW CRUCIFORME (3. 9X10) TARAUD STAINLESS STEEL FOR PLASTIQUE OEM PIAGGIO COMMON A LA RANGE-AP8150444

7
P2R reference P2R reference 71887
Maker reference Maker reference AP8150444

SCREW CRUCIFORME (3. 9X10) TARAUD STAINLESS STEEL FOR PLASTIQUE OEM PIAGGIO COMMON A LA RANGE-AP8150444

More information

Quantity required : 6

SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279

8
P2R reference P2R reference 71942
Maker reference Maker reference AP8152279

SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279

More information

Quantity required : 6

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

9
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 2

SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-00H01501701

10
P2R reference P2R reference 64537
Maker reference Maker reference 00H01501701

SCREW BTR HEAD BOMBEE (6X16) OEM PIAGGIO COMMON A LA RANGE-00H01501701

More information

Quantity required : 2

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339

11
P2R reference P2R reference 71973
Maker reference Maker reference AP8152339

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339

More information

Quantity required : 2

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-248419

12
P2R reference P2R reference 65998
Maker reference Maker reference 248419

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-248419

More information

Quantity required : 2
