Vehicle Exploded View - APRILIA RX 125 E5+ 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

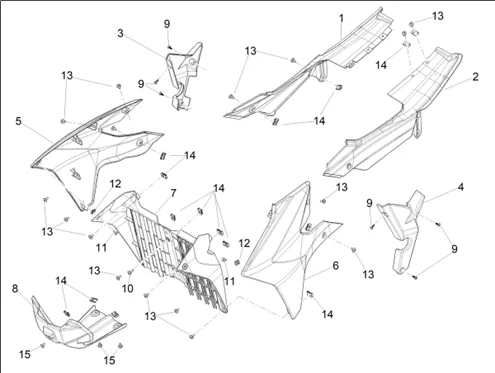

Carrosserie : 02.10 CARROSSERIE CENTRALE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1314/RX_125_E5_2025_(EMEA)_02.10.png)
1 |
1B011949000W5R-FAIRING REAR D RED More informationQuantity required : 1 |
||||||
|
1 |
1B011949000F01-FAIRING REAR RIGHT More informationQuantity required : 1 |
||||||
|
2 |
1B011948000W5R-FAIRING REAR G RED More informationQuantity required : 1 |
||||||
|
2 |
1B011948000F01-FAIRING REAR LEFT More informationQuantity required : 1 |
||||||
|
3 |
865963-CUBRE-CHASIS INF. DR. DRD125 09 More informationQuantity required : 1 |
||||||
|
4 |
865964-CUBRE-CHASIS INF. IZ. DRD125 09 More informationQuantity required : 1 |
||||||
|
5 |
1B011952000W0N-SIDE PANEL LAT. RIGHT SUP., BLACK More informationQuantity required : 1 |
||||||
|
5 |
1B011952000W0B-SIDE PANEL LAT. RIGHT SUP., WHITE More informationQuantity required : 1 |
||||||
|
6 |
1B011951000W0N-SIDE PANEL LAT. LEFT SUP., BLACK More informationQuantity required : 1 |
||||||
|
6 |
1B011951000W0B-SIDE PANEL LAT. LEFT SUP., BLACK More informationQuantity required : 1 |
||||||
|
7 |
1B011961-GRILLE RADIATOR More informationQuantity required : 1 |
||||||
|
8 |
865990-PROTECT. INF. MOTOR DRD125 09 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
9 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
10 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/3/7/img/70837.jpg)
11 |
SCREW BTR (5X12) DE FAIRING OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI V7-V9-896174 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
12 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
13 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339 More informationQuantity required : 20 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/8/img/65998.jpg)
14 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-248419 More informationQuantity required : 22 |
||||||
|
15 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339 More informationQuantity required : 3 |
