Vehicle Exploded View - APRILIA RX 125 E5+ 2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

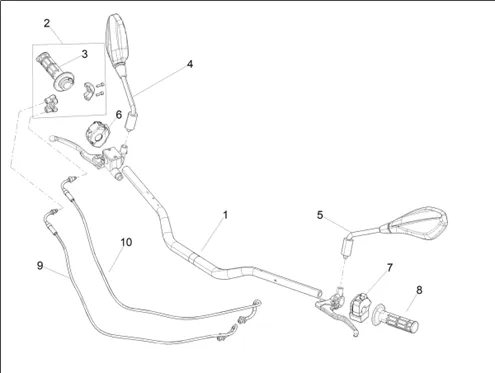

Guidon - commandes : 07.02 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1314/RX_125_E5_2025_(EMEA)_07.02.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/9/8/0/img/176980.jpg)
1 |
HANDLEBAR OEM APRILIA 125 RX, SX 2021 > 2024-2B008250 More informationQuantity required : 1 |
||||||
2 |
1B012040-CONTROL THROTTLE WITH GRIP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/9/8/2/img/176982.jpg)
3 |
GRIP/SLEEVE DE THROTTLE OEM PIAGGIO 125 SX, RX 2021 >-2B007766 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/4/5/5/0/img/154550.jpg)
4 |
RIGHT MIRROR OEM PIAGGIO 125 RX, SX APRILIA 2018 >-2R000359 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/4/5/5/2/img/154552.jpg)
5 |
LEFT MIRROR OEM PIAGGIO 125 RX, SX APRILIA 2018 >-2R000353 More informationQuantity required : 1 |
||||||
|
6 |
1B012041-DEVIATEUR FEUX DTE More informationQuantity required : 1 |
||||||
|
7 |
2R000360-SWITCH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/5/8/img/64358.jpg)
8 |
REVETEMENT DE GRIP LEFT OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00H00930071 More informationQuantity required : 1 |
||||||
|
9 |
2B007643 OPEN GAS CONTROL TRASMISSION More informationQuantity required : 1 |
||||||
|
10 |
2B007644 CLOSED GAS CONTROL TRASMISSION More informationQuantity required : 1 |
