Vehicle Exploded View - GILERA RUNNER 50 SP
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

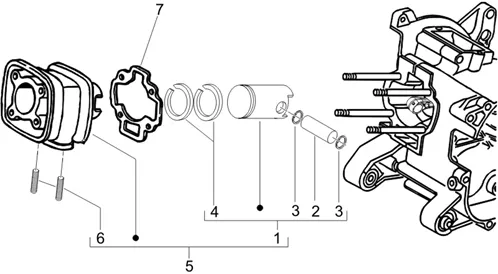

Moteur : 01.07 GROUPE CYLINDRE-PISTON-AXE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/165/Runner_50_SP_01.07.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/5/3/img/66753.jpg)
1 |
PISTON SCOOT OEM PIAGGIO 50 ZIP 1996 >, TYPHOON 1996 >, FLY 2T 2005 >, LIBERTY 2T 1998 >, NRG 1998 >, VESPA LX 2T, VESPA-S 2T 2007 >/GILERA 50 RUNNER, STALKER/APRILIA 50 SR 2012 > CAT-1 (M)-4878020001 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/5/4/img/66754.jpg)
1 |
PISTON OEM PIAGGIO 50 ZIP 1995 >, TYPHOON 1995 >, NRG 1997 >, LIBERTY 2000 >, FLY 2005 >, VESPA LX 2005 >/GILERA 50 RUNNER 1997 >, STALKER 1997 >/APRILIA 50 SR 2003 > CAT-2 (N)-4878020002 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/5/5/img/66755.jpg)
1 |
PISTON OEM PIAGGIO 50 ZIP 1996 >, TYPHOON 1996 >, FLY 2T 2005 >, LIBERTY 2T 1998 >, NRG 1998 >, VESPA LX 2T, VESPA-S 2T 2007 >/GILERA 50 RUNNER, STALKER/APRILIA 50 SR 2012 > CAT-3 (O)-4878020003 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/5/6/img/66756.jpg)
1 |
PISTON OEM PIAGGIO 50 ZIP 1995 >, TYPHOON 1995 >, NRG 1997 >, LIBERTY 2000 >, FLY 2005 >, VESPA LX 2005 >/GILERA 50 RUNNER 1997 >, STALKER 1997 >/APRILIA 50 SR 2003 > CAT-4 (P)-4878020004 More informationQuantity required : 1 |
||||||
1 |
Gr.piston 1ere MAJ TYPHOON EX 484409 |
||||||
|
1 |
825185 - GR.PISTON 2M EX 484415 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/8/2/img/65982.jpg)
2 |
SHAFT OF PISTON OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-239404 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/8/3/img/65983.jpg)
3 |
CIRCLIPS SHAFT OF PISTON OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTEUR 50 CC 2T-239455 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/4/1/img/68541.jpg)
4 |
PISTON RING SCOOTER OEM PIAGGIO 50 TYPHOON 1995 >, NRG 1998 >, ZIP 2000 >, VESPA LX 2005 >, LIBERTY 1998 >, FLY 2T 2005 >/APRILIA 50 SR 2010 >/GILERA 50 STALKER 1997 >, RUNNER 1997 > (VENDU A L UNITE)-825416 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/0/6/img/68706.jpg)
4 |
PISTON RING (40. 2) OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-827853 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/0/7/img/68707.jpg)
4 |
PISTON RING OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-827854 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/7/1/img/69071.jpg)
5 |
CYLINDER PISTON OEM PIAGGIO 50 NRG 2005 > 2017, ZIP SP 2006 >/RUNNER 50 2005 >/APRILIA 50 SR H2O 2003 > LIQUIDE-833598 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/8/1/img/65981.jpg)
6 |
STUD EXHAUST (6X30) OEM PIAGGIO 50-125 FLY, LIBERTY, VESPA LX, VESPA SPRINT, 50 NRG, TYPHOON, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR, SPORT CITY ONE-239397 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/6/2/img/68662.jpg)
7 |
CYLINDER BASE GASKET DE CYLINDER (0, 4MM) OEM PIAGGIO 50 NRG/GILERA 50 RUNNER, DNA LIQUIDE-827301 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/6/3/img/68663.jpg)
7 |
CYLINDER BASE GASKET DE CYLINDER (0, 6MM) OEM PIAGGIO 50 NRG/GILERA 50 RUNNER, DNA LIQUIDE-827303 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/6/1/img/68861.jpg)
7 |
CYLINDER BASE GASKET DE CYLINDER 0. 8 OEM PIAGGIO 50 NRG/GILERA 50 RUNNER, DNA ENGINE LIQUIDE-829633 More informationQuantity required : 1 |
