Vehicle Exploded View - GILERA RUNNER 50 SP
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

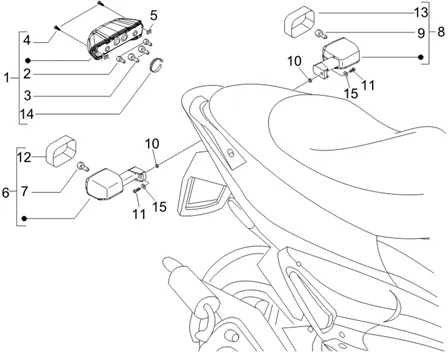

Installation électrique : 06.04 ECLAIRAGES ARRIÈRE - CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/165/Runner_50_SP_06.04.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/7/3/5/img/85735.jpg)
1 |
LAMP REAR OEM PIAGGIO GILERA 50-125 RUNNER 2006 >-639314 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/8/img/65798.jpg)
2 |
AMPOULE/LAMPE 12V 10W BA15S/R10 OEM PIAGGIO COMMON A LA RANGE-181746 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/9/img/66269.jpg)
3 |
AMPOULE/LAMPE 12V 3W W2, 1X9, 5D OEM PIAGGIO COMMON A LA RANGE-294131 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/1/img/66291.jpg)
4 |
SCREW CRUCIFORME (5X30) ORIGIINE PIAGGIO COMMON A LA RANGE-296324 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/8/img/65998.jpg)
5 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-248419 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/6/1/9/img/81619.jpg)
6 |
FRONT LEFT INDICATOR/REAR RIGHT OEM PIAGGIO 250-500 BEVERLY 2007 > 2012, 300 CARNABY 2009 > 2012/GILERA 50-125 RUNNER 2005 >-58171R More informationQuantity required : 1 |
||||||
|
7 |
AMPOULE/LAMPE 12V 10W BA15S/R10 OEM PIAGGIO COMMON A LA RANGE-181746 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/6/2/0/img/81620.jpg)
8 |
FRONT RIGHT INDICATOR/REAR LEFT OEM PIAGGIO 250-500 BEVERLY 2007 > 2012, 300 CARNABY 2009 > 2012/GILERA 50-125 RUNNER 2005 >-58172R More informationQuantity required : 1 |
||||||
|
9 |
AMPOULE/LAMPE 12V 10W BA15S/R10 OEM PIAGGIO COMMON A LA RANGE-181746 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/0/9/6/img/149096.jpg)
10 |
NUT FLANGE (M6) OEM PIAGGIO COMMON A LA RANGE-241936 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/7/img/67257.jpg)
11 |
SCREW BTR HEAD BOMBEE (6X20) OEM PIAGGIO COMMON A LA RANGE-582469 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/2/8/img/67828.jpg)
12 |
CABOCHON DE INDICATOR RIGHT OU LEFT OEM PIAGGIO GILERA 125-250-300-500 NEXUS/MOTO-GUZZI V7, V9, V11, BREVA/APRILIA 50-125 RS-639338 More informationQuantity required : 1 |
||||||
|
13 |
CABOCHON DE INDICATOR RIGHT OU LEFT OEM PIAGGIO GILERA 125-250-300-500 NEXUS/MOTO-GUZZI V7, V9, V11, BREVA/APRILIA 50-125 RS-639338 More informationQuantity required : 1 |
