Vehicle Exploded View - GILERA RUNNER 50 SP
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

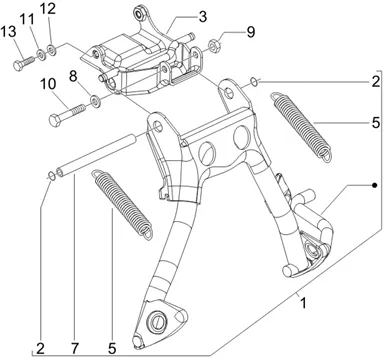

Châssis - parties plastiques - carrosseries : 02.25 BÉQUILLE/S
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/165/Runner_50_SP_02.25.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/2/2/img/67222.jpg)
1 |
CENTRE STAND OEM PIAGGIO 50 NRG 1998 >/GILERA 50 STALKER 1998 > 2011, RUNNER 2005-581537 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/2/img/66102.jpg)
2 |
GASKET SHAFT OF STAND OEM PIAGGIO COMMON A LA RANGE SCOOTER 50CC 2T-271695 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/1/img/66121.jpg)
3 |
BRACKET DE CENTRE STAND OEM PIAGGIO 50 TYPHOON, STALKER-272929 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/3/img/66143.jpg)
5 |
SPRING DE CENTRE STAND OEM PIAGGIO 50 FLY, LIBERTY, NRG, ZIP, TYPHOON, VESPA-S, VESPA LX, PRIMAVERA, SPRINT/GILERA 50 RUNNER, STALKER/APRILIA 50 SR MOTARD, SPORT-CITY-278940 More informationQuantity required : 2 |
||||||
|
6 |
CENTRE STAND OEM PIAGGIO 50 NRG 1998 >/GILERA 50 STALKER 1998 > 2011, RUNNER 2005-581537 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/8/7/img/67287.jpg)
7 |
SHAFT OF CENTRE STAND OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-583603 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
8 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
9 |
NUT (M8X6, 5) OEM PIAGGIO COMMON A LA RANGE-020108 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/1/7/img/65617.jpg)
10 |
SCREW TH (8X70) OEM PIAGGIO COMMON A LA RANGE-030080 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/4/img/65364.jpg)
11 |
WASHER PLATE (8, 2X20X2, 5) OEM PIAGGIO COMMON A LA RANGE-013861 More informationQuantity required : 2 |
||||||
|
12 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/9/img/65649.jpg)
13 |
SCREW TH (8X30) OEM PIAGGIO COMMON A LA RANGE-031122 More informationQuantity required : 2 |
