Vehicle Exploded View - GILERA RUNNER 50 SP
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

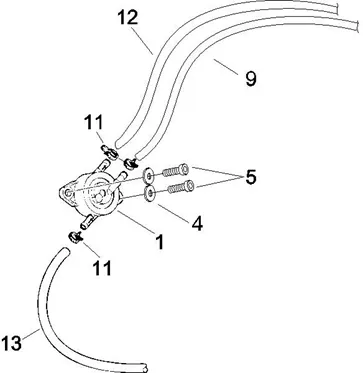

Châssis - parties plastiques - carrosseries : 02.53 INSTALATION DE L'ALIMENTATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/165/Runner_50_SP_02.53.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/2/6/img/73126.jpg)
1 |
FUEL PUMP OEM PIAGGIO 50 FLY 4T 2012 >, NRG 2005 >, 125 MP3 2007 >, X8 2004 >, X-EVO 2007 >/50-125 GILERA RUNNER 2005 >/APRILIA 125 ATLANTIC 2003 >-CM120903 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
2 |
WASHER GROWER (5, 1X8, 5X1, 5) OEM PIAGGIO COMMON A LA RANGE-016405 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/3/img/65383.jpg)
3 |
SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A TOUTE LA RANGE-015585 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/8/2/img/65682.jpg)
4 |
WASHER PLATE (5. 3X14X1) OEM PIAGGIO COMMON A LA RANGE-097733 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/2/img/66032.jpg)
5 |
SCREW CRUCIFORME (5X16) OEM PIAGGIO COMMON LA RANGE-259151 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/2/img/72862.jpg)
9 |
HOSE/FUEL HOSE (5X10X1060) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-CM001432 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/2/img/72892.jpg)
11 |
HOSE CLAMP HOSE (9, 4X12) OEM PIAGGIO COMMON A LA RANGE-CM002905 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/1/9/img/65919.jpg)
12 |
HOSE/FUEL HOSE OEM PIAGGIO COMMON A TOUTE LA RANGE (ROLLER DE 5M)-1R000160 More informationQuantity required : 1 |
||||||
|
13 |
HOSE/FUEL HOSE OEM PIAGGIO COMMON A TOUTE LA RANGE (ROLLER DE 5M)-1R000160 More informationQuantity required : 1 |
