Vehicle Exploded View - GILERA RUNNER 200 VXR 4T 1998-2005 GILERA

Moteur : T4 ENSEMBLE CYLINDRE-PISTON-AXE DE PISTON

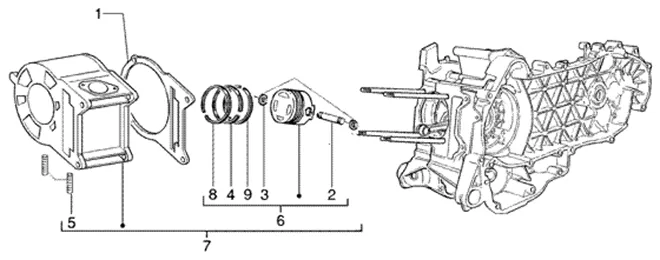

Ensemble cylindre-piston-axe de piston
Search
CYLINDER BASE GASKET DE CYLINDER (0, 4MM) MAXI SCOOTER OEM PIAGGIO COMMON A LA RANGE 125-250-300-875112

1
P2R reference P2R reference 70574
Maker reference Maker reference 875112

CYLINDER BASE GASKET DE CYLINDER (0, 4MM) MAXI SCOOTER OEM PIAGGIO COMMON A LA RANGE 125-250-300-875112

More information

Quantity required : 1

CYLINDER BASE GASKET DE CYLINDER (0, 6MM) MAXI SCOOTER OEM PIAGGIO COMMON A LA RANGE 125-250-300-875113

1
P2R reference P2R reference 70575
Maker reference Maker reference 875113

CYLINDER BASE GASKET DE CYLINDER (0, 6MM) MAXI SCOOTER OEM PIAGGIO COMMON A LA RANGE 125-250-300-875113

More information

Quantity required : 1

CYLINDER BASE GASKET DE CYLINDER (0, 8MM) MAXI SCOOTER OEM PIAGGIO COMMON A LA RANGE 125-250-300-875114

1
P2R reference P2R reference 70576
Maker reference Maker reference 875114

CYLINDER BASE GASKET DE CYLINDER (0, 8MM) MAXI SCOOTER OEM PIAGGIO COMMON A LA RANGE 125-250-300-875114

More information

Quantity required : 1

829529 - AXE

2
P2R reference P2R reference 68852
Maker reference Maker reference 829529

SHAFT OF PISTON OEM PIAGGIO 250 2009 < COMMON A LA RANGE-829529

More information

Quantity required : 1

CIRCLIPS DE PISTON OEM PIAGGIO ENGINE LEADER 125-250-963486

3
P2R reference P2R reference 70922
Maker reference Maker reference 963486

CIRCLIPS DE PISTON OEM PIAGGIO ENGINE LEADER 125-250-963486

More information

Quantity required : 2

PISTON RING INTERMEDIAIRE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 250 CC-484908

4
P2R reference P2R reference 66668
Maker reference Maker reference 484908

PISTON RING INTERMEDIAIRE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 250 CC-484908

More information

Quantity required : 1

STUD EXHAUST (6X30) OEM PIAGGIO 50-125 FLY, LIBERTY, VESPA LX, VESPA SPRINT, 50 NRG, TYPHOON, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR, SPORT CITY ONE-239397

5
P2R reference P2R reference 65981
Maker reference Maker reference 239397

STUD EXHAUST (6X30) OEM PIAGGIO 50-125 FLY, LIBERTY, VESPA LX, VESPA SPRINT, 50 NRG, TYPHOON, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR, SPORT CITY ONE-239397

More information

Quantity required : 2

GROUPE PISTON

6
P2R reference P2R reference
Maker reference Maker reference 8300530002

GROUPE PISTON

GROUPE PISTON

6
P2R reference P2R reference
Maker reference Maker reference 8300530001

GROUPE PISTON

CYLINDER/PISTON ASSEMBLY "PIAGGIO GENUINE PART" X8 200/ VESPA GT 200/ GILERA RUNNER 200/ APRILIA ATLANTIC 200, SPORT-CITY 200 -843291-

7
P2R reference P2R reference 69275
Maker reference Maker reference 843291

CYLINDER/PISTON ASSEMBLY "PIAGGIO GENUINE PART" X8 200/ VESPA GT 200/ GILERA RUNNER 200/ APRILIA ATLANTIC 200, SPORT-CITY 200 -843291-

More information

Quantity required : 1

843228 - SET SEGMENT

8
P2R reference P2R reference 69269
Maker reference Maker reference 843228

SET OF 3 SEGMENTS (D 72X1) OEM PIAGGIO 200 4T COMMON A LA RANGE-843228

More information

Quantity required : 1

PISTON RING DE LAMP OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 250 CC-830486

8
P2R reference P2R reference 68921
Maker reference Maker reference 830486

PISTON RING DE LAMP OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 250 CC-830486

More information

Quantity required : 1

PISTON RING RACLEUR OIL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 250 CC-486363

9
P2R reference P2R reference 66714
Maker reference Maker reference 486363

PISTON RING RACLEUR OIL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 250 CC-486363

More information

Quantity required : 1
