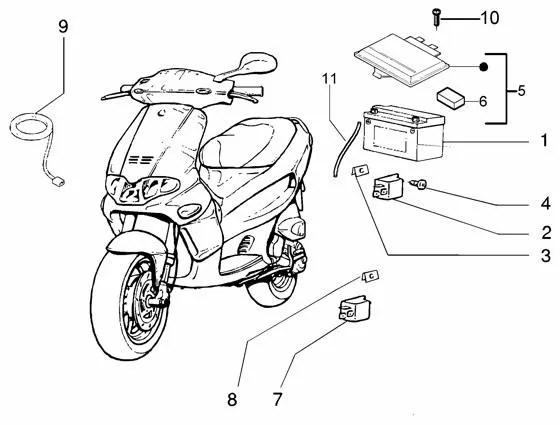

Vehicle Exploded View - GILERA RUNNER 200 VXR 4T 1998-2005 GILERA

Connexions électriques : T52 DISPOSITIFS ELECTRIQUES
Dispositifs electriques
Search
497629 - BATTERIE 12V 11A 100CCA (PB10L-B)

1
P2R reference P2R reference 146208
Maker reference Maker reference 497629

497629 - BATTERIE 12V 11A 100CCA (PB10L-B)

More information

Quantity required : 1

BATTERY 12V 10AH OEM PIAGGIO COMMON A LA RANGE-584867

1
P2R reference P2R reference 67320
Maker reference Maker reference 584867

BATTERY 12V 10AH OEM PIAGGIO COMMON A LA RANGE-584867

More information

Quantity required : 1

RELAIS STARTER MOTOR 12V 30A OEM PIAGGIO COMMON A TOUTE LA RANGE-58246R

2
P2R reference P2R reference 67258
Maker reference Maker reference 58246R

RELAIS STARTER MOTOR 12V 30A OEM PIAGGIO COMMON A TOUTE LA RANGE-58246R

More information

Quantity required : 1

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017409

3
P2R reference P2R reference 72925
Maker reference Maker reference CM017409

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017409

More information

Quantity required : 1

SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349

4
P2R reference P2R reference 66035
Maker reference Maker reference 259349

SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349

More information

Quantity required : 1

COVER DE BATTERY OEM PIAGGIO GILERA 50-125 RUNNER 1998 > 2005-576170

5
P2R reference P2R reference 80770
Maker reference Maker reference 576170

COVER DE BATTERY OEM PIAGGIO GILERA 50-125 RUNNER 1998 > 2005-576170

More information

Quantity required : 1

BUFFER RUBBER MOUNT OEM PIAGGIO COMMON A LA RANGE-577313

6
P2R reference P2R reference 67154
Maker reference Maker reference 577313

BUFFER RUBBER MOUNT OEM PIAGGIO COMMON A LA RANGE-577313

More information

Quantity required : 1

RELAIS STARTER MOTOR MAXI SCOOTER OEM PIAGGIO 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250-300 ATLANTIC (12V-80A)-58115R

7
P2R reference P2R reference 67203
Maker reference Maker reference 58115R

RELAIS STARTER MOTOR MAXI SCOOTER OEM PIAGGIO 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250-300 ATLANTIC (12V-80A)-58115R

More information

Quantity required : 1

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017409

8
P2R reference P2R reference 72925
Maker reference Maker reference CM017409

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017409

More information

Quantity required : 1

ANTENNE OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER (FRONT 2012)-1D003415R

9
P2R reference P2R reference 67237
Maker reference Maker reference 58200R

ANTENNE OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER (FRONT 2012)-1D003415R

More information

Quantity required : 1

SCREW OF FAIRING (3X18) OEM PIAGGIO COMMON A TOUTE LA RANGE-258249

10
P2R reference P2R reference 66028
Maker reference Maker reference 258249

SCREW OF FAIRING (3X18) OEM PIAGGIO COMMON A TOUTE LA RANGE-258249

More information

Quantity required : 1

582520 - RENIFLARD

11
P2R reference P2R reference 67259
Maker reference Maker reference 582520

582520-RENIFLARD

More information

Quantity required : 1
