Vehicle Exploded View - GILERA RUNNER 200 VXR 4T 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

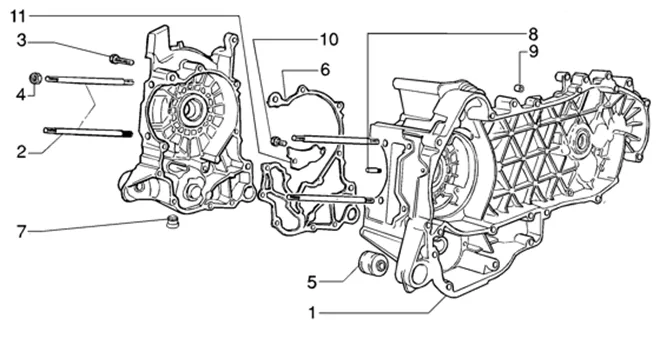

Moteur : T2 CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/658/Runner_200_VXR_4T_1998-2005_T2.PNG)
1 |
COMPLETE CRANKCASE "PIAGGIO GENUINE PART" 125 MP3, X8, X-EVO, X9, FLY, VESPA GTS/GILERA 125 NEXUS/APRILIA 125 ATLANTIC (CLASSE-1 DIA 32,959/32,965 MM) -CM1485205001- More informationQuantity required : 1 |
||||||
|
1 |
COMPLETE CRANKCASE "PIAGGIO GENUINE PART" 125 MP3, X8, X-EVO, X9, FLY, VESPA GTS/GILERA 125 NEXUS/APRILIA 125 ATLANTIC (CLASSE-2 DIA 32,959/32,959 MM) -CM1485205002- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/5/4/img/70654.jpg)
2 |
STUD DE CYLINDER (8X151) OEM PIAGGIO COMMON A LA RANGE 125-250 ENGINE LEADER-1A003629R More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/5/img/72705.jpg)
3 |
SCREW FLANGE TH (6X60) OEM PIAGGIO COMMON A LA RANGE-B016425 More informationQuantity required : 11 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/5/8/img/66358.jpg)
4 |
NUT FLANGE (8X1. 25) OEM PIAGGIO COMMON A LA RANGE-411296 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/0/4/img/66704.jpg)
5 |
RUBBER MOUNT DE CASING ENGINE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-486081 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/5/1/img/68851.jpg)
6 |
GASKET OF CASING ENGINE OEM PIAGGIO 125 FLY, LIBERTY, X8 STREET, VESPA LX, VESPA-S/APRILIA 125 SR, SPORT-CITY, MOJITO-829526 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/7/3/img/72673.jpg)
7 |
CAP (M12X1. 5X11) OEM PIAGGIO COMMON A LA RANGE-B015433 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/5/4/img/66654.jpg)
8 |
BUSE CASING MOREUR OEM PIAGGIO COMMON A LA RANGE-484034 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
9 |
BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956 More informationQuantity required : 2 |
||||||
|
10 |
SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-1A003111 More informationQuantity required : 1 |
||||||
|
10 |
SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-1A003111 More informationQuantity required : 1 |
||||||
|
11 |
828766 - PLAQUETTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/4/9/img/69149.jpg)
12 |
WASHER ARRET CASING ENGINE OEM PIAGGIO 125-200-250 2013 <-840489 More informationQuantity required : 1 |
