Vehicle Exploded View - GILERA RUNNER 200 VXR 4T 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

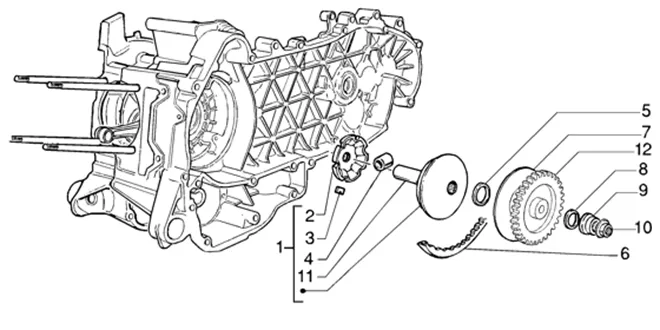

Moteur : T13 DEMI-POULIE MOTRICE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/658/Runner_200_VXR_4T_1998-2005_T13.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/3/4/img/73234.jpg)
1 |
PULLEY MOTRICE/VARIATOR OEM PIAGGIO 200 X8, X9, BEVERLY, CARNABY, VESPA GT/GILERA 200 RUNNER/APRILIA 200 ATLANTIC, SPORT-CITY, SCARABEO-CM144404 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/9/0/img/66690.jpg)
2 |
FLASQUE A ROULEAUX PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-485710 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/6/1/img/66461.jpg)
3 |
GUIDE/PATIN DE VARIATOR MAXI SCOOTER OEM PIAGGIO 125 MP3 2007 >, X8 2004 >, X9 2003 >, X-EVO 2007 >, FLY 2005 >, VESPA LX 2005 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 2005 >-4348555 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/9/1/img/66691.jpg)
4 |
GALET/ROLLER OEM PIAGGIO 180 HEXAGON 4T, X9, 200 X9, X8, VESPA GRANTURISMO/GILERA 180 RUNNER, DNA/APRILIA 200 ATLANTIC (SET OF 6)-4857135 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/0/3/img/69003.jpg)
5 |
O-RING PULLEY MOTRICE OEM PIAGGIO 200 X8, LIBERTY 2008 <-832508 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/6/9/img/69169.jpg)
6 |
DRIVE BELT MAXI SCOOTER OEM PIAGGIO 180 HEXAGON 4T, X9, 200 X9, X8, VESPA GRANTURISMO/GILERA 180 RUNNER, DNA/APRILIA 200 ATLANTIC-840908 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/1/4/img/69014.jpg)
7 |
HALF PULLEY FIXE DE VARIATOR OEM PIAGGIO GILERA 180 RUNNER/APRILIA 125 SCARABEO LIGHT-832720 More informationQuantity required : 1 |
||||||
7 |
834774-HALF PULLEY More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/3/img/72693.jpg)
10 |
NUT IGNITION/PULLEY OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-B015804 More informationQuantity required : 1 |
||||||
|
11 |
483889-SPACER More informationQuantity required : 1 |
||||||
|
12 |
840815 - LIMITEUR More informationQuantity required : 1 |
||||||
|
12 |
LIMITEUR |
