Vehicle Exploded View - APRILIA RSV4 1000 APRC R 2011-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

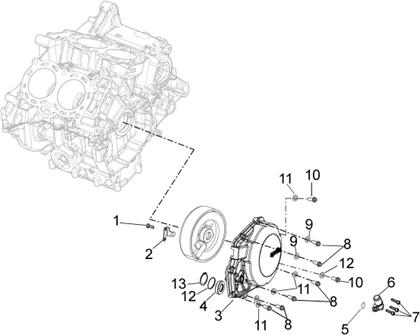

Moteur : 29.51 COUVERCLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/560/RSV4_1000_APRC_R_2011-2012_29.51.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
1 |
SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152272 More informationQuantity required : 1 |
||||||
2 |
857204-PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/9/4/5/img/42945.jpg)
3 |
ALTERNATOR COVER "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, 1000-1100TUONO - BLACK -89841400XNB- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/9/2/5/img/42925.jpg)
4 |
OIL SEAL (18X30X7) DE COVER ENGINE OEM PIAGGIO APRILIA 1000 RSV-4, TUONO/MOTO-GUZZI 750 V7, 950 V9-898268 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/5/2/img/69752_20251023155950.jpg)
5 |
O-RING (14. 5X18X2) OEM PIAGGIO APRILIA 1000 RSV-4, TUONO-V4, PORTER DIESEL-857176 More informationQuantity required : 1 |
||||||
|
6 |
85746200XNB-FITTING More informationQuantity required : 1 |
||||||
|
7 |
857048-SCREW More informationQuantity required : 3 |
||||||
|
8 |
871094-SCREW More informationQuantity required : 6 |
||||||
|
9 |
857435-WASHER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/3/2/img/70532.jpg)
10 |
SCREW TH FLANGE (6X40) OEM PIAGGIO COMMON A LA RANGE-874550 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/3/4/img/109834.jpg)
11 |
WASHER ELASTIC COURBE (6X12) OEM PIAGGIO COMMON A LA RANGE-658830 More informationQuantity required : 6 |
||||||
|
12 |
898269-WASHER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/1/img/63821.jpg)
13 |
CLIPS/CIRCLIPS (30 MM) OEM PIAGGIO COMMON A LA RANGE-006630 More informationQuantity required : 1 |
