Vehicle Exploded View - APRILIA RSV4 1000 APRC R 2011-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

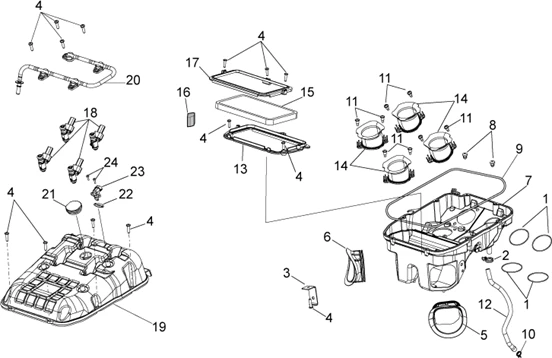

Chassis : 28.23 CORPS FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/560/RSV4_1000_APRC_R_2011-2012_28.23.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/9/5/3/img/41953.jpg)
1 |
O-RING (56. 82X2. 62) BODY DE FILTER OEM APRILIA COMMON A LA RANGE-893240 More informationQuantity required : 4 |
||||||
2 |
CM002912-CLAMP More informationQuantity required : 1 |
||||||
|
3 |
890938-SPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
4 |
SCREW PARKER (5X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152329 More informationQuantity required : 18 |
||||||
|
5 |
858880-SLEEVE More informationQuantity required : 1 |
||||||
|
6 |
858932-SLEEVE More informationQuantity required : 1 |
||||||
|
7 |
858876-BASE BODY FILTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/7/img/71747.jpg)
8 |
BUTEE RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8144087 More informationQuantity required : 2 |
||||||
|
9 |
858881-GASKET BODY FILTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/6/img/72886.jpg)
10 |
CLAMP HOSE COOLING (21 MM) OEM PIAGGIO COMMON A LA GAMMECM001927 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/9/3/3/img/41933.jpg)
11 |
SCREW AIR FILTER OEM PIAGGIO APRILIA 1200 CAPONORD, DORSODURO, 1000 RSV-4, TUONO-893132 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/5/5/7/img/40557.jpg)
12 |
HOSE DE MISE A L'AIR LIBRE FILTER A TERRE OEM PIAGGIO APRILIA 1000 RSV-4, TUONO V4-858808 More informationQuantity required : 1 |
||||||
|
13 |
858877-BRACKET FILTER More informationQuantity required : 1 |
||||||
|
13 |
895109-BRACKET More informationQuantity required : 1 |
||||||
|
14 |
858879-CONNECTION MANIFOLD More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/6/5/3/img/40653.jpg)
15 |
ELEMENT DE AIR FILTER OEM PIAGGIO APRILIA 1000 RSV-4 2009 > 2015-858930 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/2/2/img/71222_20260205021316.jpg)
15 |
ELEMENT/MOUSSE DE AIR FILTER MOTO OEM PIAGGIO APRILIA 1000 RSV-2, RSV-4 APRC, TUONO, 450-500 RXV, SXV/MOTO-GUZZI 1400 AUDACE, CALIFORNIA 2012 >, ELDORADO, 1200 GRISO, STELVIO, V85-AP8104329 More informationQuantity required : 1 |
||||||
|
16 |
894015-FILTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/6/2/7/img/40627.JPG)
17 |
CORNICHE DE FILTER AIR APRILIA RSV4 1000 2009 >-858878 More informationQuantity required : 1 |
||||||
|
17 |
895110-BUTTON More informationQuantity required : 1 |
||||||
|
18 |
INJECTOR MARELLI (WP063 "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4 -890769- More informationQuantity required : 4 |
||||||
|
19 |
858875 - COUVERCLE CORPS FILTRE More informationQuantity required : 1 |
||||||
|
20 |
858807-FUEL HOSE More informationQuantity required : 1 |
||||||
|
21 |
895824-CAP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/5/9/img/73459.jpg)
22 |
GASKET DETECTEUR TEMPERATURE AIR OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-GU30027931 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/6/6/img/73466.jpg)
23 |
DETECTEUR DE TEMPERATURE AIR OEM APRILIA-MOTO-GUZZI COMMON A LA RANGE-GU30729330 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/9/img/71879.jpg)
24 |
SCREW CRUCIFORME (2. 9X12) TARAUD FOR PLASTIQUE INOX OEM PIAGGIO COMMON A LA RANGE-AP8150421 More informationQuantity required : 1 |
