Vehicle Exploded View - APRILIA RSV4 1000 APRC R 2011-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

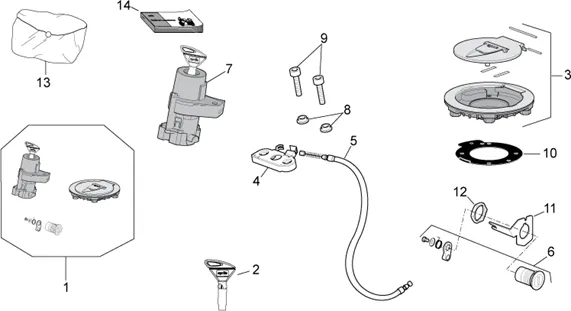

Chassis : 28.36 KIT SERRURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/560/RSV4_1000_APRC_R_2011-2012_28.36.PNG)
1 |
B043920 - KIT SERRURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/5/2/3/img/49523.jpg)
2 |
EBAUCHE DE CLE OEM PIAGGIO APRILIA 1000 RSV-2 2004 > 2008, RSV-4 2009 >, TUONO V2 2006 > 2009, TUNO V4 2011 >, 1100 TUONO V4 2015 >, 1200 CAPONORD 2014 >-AP8140711 More informationQuantity required : 1 |
||||||
|
3 |
B043929-CAP FUEL More informationQuantity required : 1 |
||||||
|
4 |
AP8102913-PL. FIX. SEAT PASS. More informationQuantity required : 1 |
||||||
|
5 |
858955-CABLE LOCK More informationQuantity required : 1 |
||||||
|
6 |
AP8104719-SERRATURA SELLA More informationQuantity required : 1 |
||||||
|
7 |
858580 - KIT SERRURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/0/7/img/57007.jpg)
8 |
BUSH OEM PIAGGIO COMMON A LA RANGE-AP8221129 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/2/img/71852.jpg)
9 |
SCREW BTR (6X35) OEM PIAGGIO COMMON A LA RANGE-AP8150285 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/3/8/img/71238.jpg)
10 |
GASKET OF CAP FUEL OEM APRILIA 1000-1100 RSV, TUONO-AP8104803 More informationQuantity required : 1 |
||||||
|
11 |
AP8134948-PIASTRINA FERMACAVO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/4/img/71184.jpg)
12 |
NUT LOCK (M22 X 1. 5) OEM PIAGGIO COMMON A LA RANGE-AP8102523 More informationQuantity required : 1 |
||||||
|
13 |
894056-TROUSSE A OUTILS More informationQuantity required : 1 |
||||||
|
14 |
|
||||||
|
14 |
|
||||||
|
14 |
|
||||||
|
14 |
|
