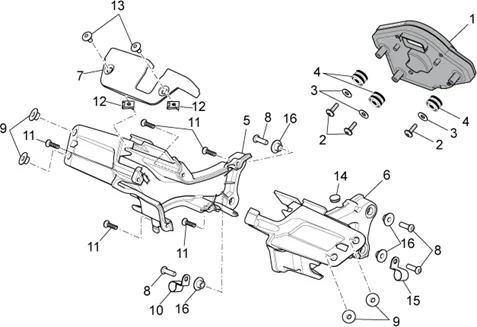

Vehicle Exploded View - APRILIA RSV4 1000 APRC R 2011-2012 APRILIA

Chassis : 28.17 TABLEAU DE BORD
Tableau de bord
Search
B044616 - TABLEAU DE BORD

1
P2R reference P2R reference 62337
Maker reference Maker reference B044616

B044616 - TABLEAU DE BORD

More information

Quantity required : 1

SCREW CRUCIFORME (5X15) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150509

2
P2R reference P2R reference 71897
Maker reference Maker reference AP8150509

SCREW CRUCIFORME (5X15) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150509

More information

Quantity required : 3

WASHER PLATE (5X20X1. 5) OEM PIAGGIO COMMON A LA RANGE-AP8150255

3
P2R reference P2R reference 71847
Maker reference Maker reference AP8150255

WASHER PLATE (5X20X1. 5) OEM PIAGGIO COMMON A LA RANGE-AP8150255

More information

Quantity required : 3

RUBBER SILENBLOC OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8220150

4
P2R reference P2R reference 72271
Maker reference Maker reference AP8220150

RUBBER SILENBLOC OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8220150

More information

Quantity required : 3

2B002001 - SUPPORT TABLEAU DE BORD

5
P2R reference P2R reference 108678
Maker reference Maker reference 2B002001

2B002001-BRACKET PANEL DE EDGE *

More information

Quantity required : 1

2B001562 - SUPPORT GAU.

6
P2R reference P2R reference 108637
Maker reference Maker reference 896152

2B001562-BRACKET GAU.

More information

Quantity required : 1

2B001562 - SUPPORT GAU.

6
P2R reference P2R reference 108637
Maker reference Maker reference 2B001562

2B001562-BRACKET GAU.

More information

Quantity required : 1

890787 - COUV. SUPPORT TAB.BORD

7
P2R reference P2R reference 41772
Maker reference Maker reference 890787

890787-COUV. BRACKET TAB. EDGE

More information

Quantity required : 1

SCREW BTR HEAD BOMBEE (6X20) INOX OEM PIAGGIO COMMON A LA RANGE-AP8224470

8
P2R reference P2R reference 72330
Maker reference Maker reference AP8224470

SCREW BTR HEAD BOMBEE (6X20) INOX OEM PIAGGIO COMMON A LA RANGE-AP8224470

More information

Quantity required : 4

AP8221145 - "DOUILLE EN ""T"" *"

9
P2R reference P2R reference 72298
Maker reference Maker reference AP8221145

AP8221145-" BUSH EN " " T " " * "

More information

Quantity required : 4

CLAMP MOUNTING WIRING OU HOSE OUVERT OEM PIAGGIO COMMON A LA RANGE-845978

10
P2R reference P2R reference 69377
Maker reference Maker reference 845978

CLAMP MOUNTING WIRING OU HOSE OUVERT OEM PIAGGIO COMMON A LA RANGE-845978

More information

Quantity required : 1

SCREW PARKER (5X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152329

11
P2R reference P2R reference 71970
Maker reference Maker reference AP8152329

SCREW PARKER (5X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152329

More information

Quantity required : 5

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

12
P2R reference P2R reference 71174
Maker reference Maker reference AP8102375

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

More information

Quantity required : 2

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500

13
P2R reference P2R reference 71894
Maker reference Maker reference AP8150500

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500

More information

Quantity required : 2

197551 - TAMPON

14
P2R reference P2R reference 65828
Maker reference Maker reference 197551

197551-BUFFER

More information

Quantity required : 1

898126 - COLLIER

15
P2R reference P2R reference 42915
Maker reference Maker reference 898126

898126-CLAMP

More information

Quantity required : 1

BUSH EN T (6. 30X10X7. 50) OEM APRILIA COMMON A LA RANGE-AP8121728

16
P2R reference P2R reference 46929
Maker reference Maker reference AP8121728

BUSH EN T (6. 30X10X7. 50) OEM APRILIA COMMON A LA RANGE-AP8121728

More information

Quantity required : 4
