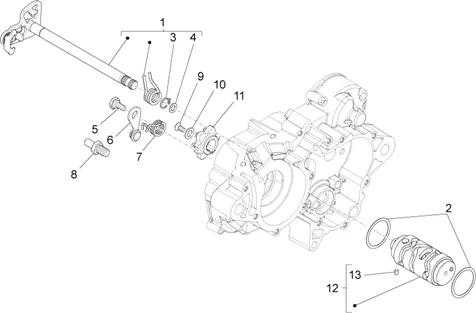

Moteur : 03.170 BOÎTE DE VITESSES / SELECTEUR / DESMODROMIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/748/RS4_50_2T_2014_03.170.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/1/8/4/img/146184.jpg)
1 |
SHAFT OF SELECTEUR DE VITESSES OEM PIAGGIO APRILIA 50-125 RS4 2011 > 2017, 125 TUONO 2017 >, 125 RX, SX 2018 >-1A006754 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/2/2/img/69422.jpg)
2 |
WASHER DE TAMBOUR DE SELECTION DE SPEED OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA/APRILIA 50 SX, RX, RS 2006 >-847036 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/9/9/img/63799.jpg)
3 |
CLIPS/CIRCLIPS OEM PIAGGIO COMMON A LA RANGE-005970 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/8/img/69498.jpg)
4 |
WASHER DE CALAGE SPINDLE SELECTION DE VITESSES OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX, RS 2006 >-8472286 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/2/2/img/151722.jpg)
5 |
SCREW PLATE SPRING SPINDLE SELECTEUR DE VITESSES OEM DERBI SENDA 2000 >/GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX-1A010690 More informationQuantity required : 1 |
||||||
|
5 |
SCREW PLATE SPRING SPINDLE SELECTEUR DE VITESSES OEM DERBI SENDA 2000 >/GILERA 50 SMT, RCR/APRILIA 50 RS, SX, RX-1A010690 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/7/1/img/149171.jpg)
6 |
LEVER INTERNE SELECTION VITESSES OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA RS 2006 >, SX, RX-1A010685 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/7/0/img/149170.jpg)
7 |
SPRING GEAR LEVER 50 A BOX OEM 50 GILERA SMT, RCR 2006 >/DERBI 50 SENDA 2006 >/APRILIA RS4 2011 >, 50 SX, RX 2006 >-1A010665 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/8/0/3/img/94803.jpg)
8 |
SPINDLE/BUTEE GEAR LEVER OEM DERBI 50 SENDA 2010 >/GILERA 50 SMT, RCR 2006 >/APRILIA 50 RS, SX, RX 2006 >-B018064 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/5/img/71815.jpg)
9 |
SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8150044 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/7/img/69487.jpg)
10 |
WASHER TAMBOUR DE SELECTION DE VITESSES OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2006 >/APRILIA SX, RX, RS-847214 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/2/3/img/69423.jpg)
11 |
WHEEL DE SELECTION CHANGEMENT DE SPEED OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA RX, SX 2006 >, RS 2006 >, RS4 2011 >-847038 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/9/5/1/img/151951.jpg)
12 |
DESMODROMIQUE/TAMBOUR SELECTION VITESSES OEM APRILIA 50 RS 2006 >/DERBI 50 GPR 2006 >-1A011715 More informationQuantity required : 1 |
||||||
|
12 |
DESMODROMIQUE/TAMBOUR SELECTION VITESSES OEM APRILIA 50 RS 2006 >/DERBI 50 GPR 2006 >-1A011715 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/6/img/69486.jpg)
13 |
SPINDLE ROLLER DE CONTROL SPEED OEM DERBI 50 SENDA 2000 >/GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS-847213 More informationQuantity required : 1 |
