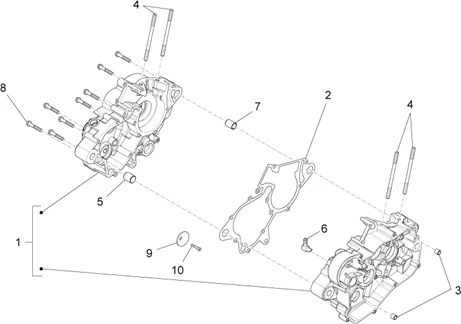

Moteur : 03.030 CARTERS I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/748/RS4_50_2T_2014_03.030.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/6/6/img/73266.jpg)
1 |
CASING ENGINE OEM PIAGGIO APRILIA 50 RS4 2011 > 2017-CM1503105 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/6/8/img/72668.jpg)
2 |
GASKET OF CASING ENGINE OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA RX, SX 2006 >, RS 2006 > 2010, RS4 2011 >-1A009969 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/0/8/img/69508.jpg)
3 |
PION DE CENTRAGE CASING OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2000 >/APRILIA 50 RS, SX, RX-847241 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/5/0/img/70650.jpg)
4 |
STUD DE CYLINDER (109MM) OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA SX, RX 2006 >, RS 2006 > 2010, RS4 2011 >-877264 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/6/4/img/69464.jpg)
5 |
BUSH DE CENTRAGE OEM DERBI 50 SENDA 2005 > 2009/APRILIA RS 50 2011-2019-847097 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/1/6/img/69416.jpg)
6 |
FITTING RENIFLARD OIL OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA RS, SX, RX 2006 >-847024 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/1/5/img/69415.jpg)
7 |
PION DE CENTRAGE (D15X20) CASING ENGINE OEM PIAGGIO 50 GILERA SMT, RCR/APRILIA SX, RX, RS/DERBI SENDA 2006 >-847023 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/2/2/img/72622.jpg)
8 |
CASING SCREW ENGINE 6X50 OEM PIAGGIO GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS-B013042 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/5/4/img/69554.jpg)
9 |
PLATE CASING ENGINE OEM APRILIA 50 2T RS 2006 > 2019-848019 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/3/7/img/72637.jpg)
10 |
SCREW FLANGE TH (6X17) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-B013529 More informationQuantity required : 1 |
