Vehicle Exploded View - APRILIA RS 50 RS4 50 2T 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

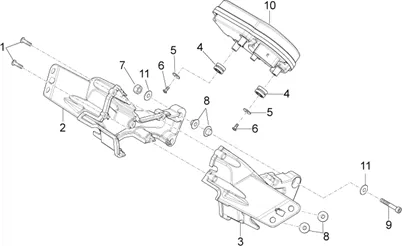

Feux - instruments : 08.020 INSTRUMENTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/748/RS4_50_2T_2014_08.020.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
1 |
SCREW PARKER (5X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152329 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/0/2/8/img/43028.jpg)
2 |
BRACKET DE INSTRUMENT CLUSTER RIGHT OEM PIAGGIO APRILIA 50-125 RS 2011 > 2019-898687 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/0/2/9/img/43029.jpg)
3 |
BRACKET DE INSTRUMENT CLUSTER LEFT OEM PIAGGIO APRILIA 50-125 RS 2011 > 2019-898688 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/1/img/72271.jpg)
4 |
RUBBER SILENBLOC OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8220150 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/3/img/71873.jpg)
5 |
WASHER PLATE (5, 5X15X1, 2) OEM PIAGGIO COMMON A LA RANGE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/7/img/71897.jpg)
6 |
SCREW CRUCIFORME (5X15) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150509 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
7 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/9/img/46929.jpg)
8 |
BUSH EN T (6. 30X10X7. 50) OEM APRILIA COMMON A LA RANGE-AP8121728 More informationQuantity required : 4 |
||||||
9 |
SCREW BTR (6X45) OEM PIAGGIO COMMON A LA RANGE-AP8150508 More informationQuantity required : 2 |
||||||
|
10 |
INSTRUMENT CLUSTER/PANEL DE EDGE OEM PIAGGIO APRILIA 50-125 RS 2011 > 2016-B044579 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/4/img/71834.jpg)
11 |
WASHER PLATE (6, 6X18X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8150179 More informationQuantity required : 4 |
