Vehicle Exploded View - APRILIA RS 50 RS4 50 2T 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

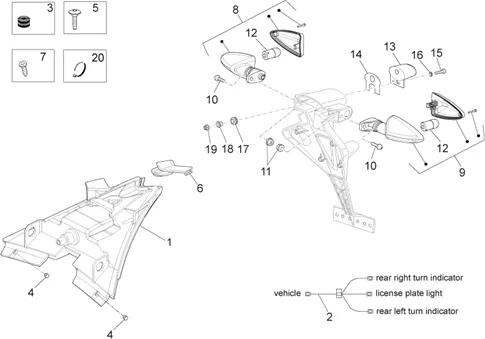

Feux - instruments : 08.030 FEUX ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/748/RS4_50_2T_2014_08.030.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/0/5/3/img/151053.jpg)
1 |
LAMP REAR OEM APRILIA 1000 RSV-4 2011 >, 11 RSV-4 2019 >, 1000 TUONO V4 2011 >, 1100 TUONO V4 2015 >, 50-125 RS4 2011 >, 125 TUONO 2017 >, CAPONORD-2D000238R More informationQuantity required : 1 |
||||||
2 |
898698-WIRING LAMP AR More informationQuantity required : 1 |
||||||
|
2 |
898699-WIRING LAMP AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/3/8/img/56838.jpg)
3 |
RUBBER GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-AP8220186 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/5/img/72295.jpg)
4 |
BUSH/BUSH (5. 3X8X7. 1) OEM PIAGGIO COMMON A LA RANGE-AP8221036 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
5 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/6/0/4/img/40604.jpg)
6 |
CABOCHON/COVER OF REAR LIGHT OEM APRILIA 50-125 RS, RSV4 2011 >-858839 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/8/img/71878.jpg)
7 |
SCREW CRUCIFORME (3. 9X7. 5) TARAUD FOR PLASTIQUE INOX OEM PIAGGIO COMMON A LA RANGE-AP8150420 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/3/2/5/img/48325.jpg)
8 |
INDICATOR AVG/ARD OEM PIAGGIO 50-125 APRILIA RS4 2011 >, TUONO, 750 SHIVER, 1000 TUONO, 1200 CAPONORD-AP8127803 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/3/2/6/img/48326.jpg)
9 |
INDICATOR AVD/ARG OEM PIAGGIO 50-125 APRILIA RS4 2011 >, TUONO, 750 SHIVER, 1000 TUONO, 1200 CAPONORD-AP8127804 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/7/img/71917.jpg)
10 |
SCREW BTR HEAD BOMBEE (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152137 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
11 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
|
12 |
AMPOULE/LAMPE 12V 10W RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-AP8127489 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/1/img/71411.jpg)
13 |
HOSE CLAMP NYLON TYPE RILSAN 4, 5X280MM OEM PIAGGIO COMMON A LA RANGE-AP8120657 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/4/2/img/69642.jpg)
13 |
ECLAIRAGE DE PLATE D'IMMATRICULATION OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-85256R More informationQuantity required : 1 |
||||||
|
14 |
AP8117258-EPONGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/9/img/71899.jpg)
15 |
SCREW CRUCIFORME (4X16) INOX OEM PIAGGIO COMMON A LA RANGE-AP8150522 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/5/img/71825.jpg)
16 |
WASHER PLATE (4X9) OEM PIAGGIO COMMON A LA RANGE-AP8150158 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/6/img/71276.jpg)
17 |
RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8112600 More informationQuantity required : 1 |
||||||
|
18 |
894566-BUSH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
19 |
NUT AUTOBLOQUANT/NYLSTOP (M4) OEM PIAGGIO COMMON A LA RANGE-AP8150204 More informationQuantity required : 2 |
||||||
|
20 |
HOSE CLAMP NYLON TYPE RILSAN 4, 5X280MM OEM PIAGGIO COMMON A LA RANGE-AP8120657 More informationQuantity required : 1 |
