Vehicle Exploded View - APRILIA RS 50 RS4 50 2T 2011-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

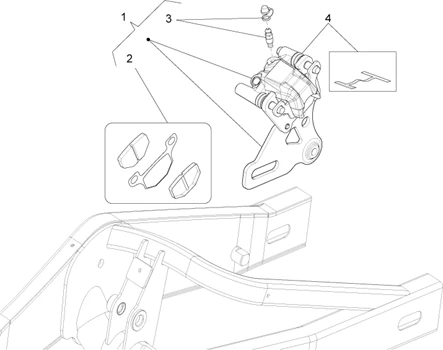

Système frein abs : 06.040 PINCE FREIN ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/747/RS4_50_2T_2011-2013_06.040.PNG)
1 |
2B000735 - PINCE FREIN AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/8/7/img/127187.jpg)
1 |
REAR BRAKE CONTROL(MASTER CYLINDER+CALIPER) "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2001>2013 - 85239R - More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/2/2/2/img/70222.jpg)
2 |
BRAKE PADS REAR AJP OEM PIAGGIO APRILIA 50-125 RS 2011 > 2013-866692 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/3/8/img/72838.jpg)
2 |
BRAKE PAD REAR (SBS S60 HH) OEM DERBI 50 SENDA DRD 2005 > 2011-B044223 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/3/9/img/72839.jpg)
2 |
BRAKE PAD OEM PIAGGIO APRILIA 50 RS4 2011 >, 125 RS4 2011 > AR-B044224 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/0/4/5/img/70045.jpg)
3 |
SCREW OF BLEEDING BRAKE CALIPER OEM DERBI 50 SENDA 2010 </GILERA 50 SMT, RCR 2006 </APRILIA 50-125 RS 2013 <-864123 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/0/5/img/70305.jpg)
3 |
SCREW - BRAKE DRAIN SCREW "PIAGGIO GENUINE PART" APRILIA 50-125 RS 2011>, 50 SX, RX 2011>, 50 SMT, RCR 2011> -867240 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/4/7/img/72847.jpg)
4 |
KIT SPRING CALIPER REAR OEM PIAGGIO 50-125 RS 2011 >-B044412 More informationQuantity required : 1 |
