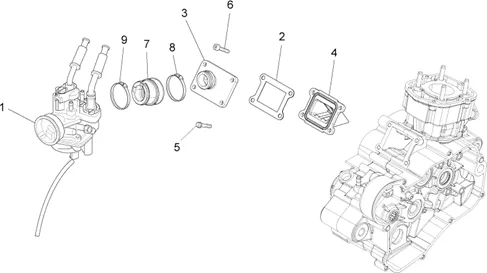

Vehicle Exploded View - APRILIA RS 50 RS4 50 2T 2011-2013

	P2R reference	73120
	Maker reference	CM112001

CM112001-TUBE VIDANGE CUVETTE

	P2R reference	73289
	Maker reference	CM152713

CARBURETTOR OEM PIAGGIO APRILIA 50 RS4 2011 > 2017-CM152713

	P2R reference	73182
	Maker reference	CM141711

BOISSEAU/VOLET DE THROTTLE OEM DERBI 50 SENDA 2010 >/NRG/APRILIA 50 RS, SX, RX, SR-CM141711

	P2R reference	69461
	Maker reference	847091

GASKET OF REED VALVE OEM PIAGGIO GILERA 50 SMT, RCR2006 > 2017/DERBI 50 SENDA 2000 > 2017/APRILIA 50 SX, RX, RS 2006 > 2017-847091

	P2R reference	149169
	Maker reference	1A010664

FITTING/MANIFOLD INTAKE OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2000 > 2017/APRILIA RS, SX, RX 2006 > 2017-1A010664

	P2R reference	73099
	Maker reference	CM107503

AIGUILLE DE CARBURETTOR A8 OEM PIAGGIO COMMON A LA RANGE-CM107503

	P2R reference	72349
	Maker reference	AP8276033

AIGUILLE DE CARBURETTOR A13 OEM PIAGGIO COMMON A LA RANGE-AP8276033

	P2R reference	149169
	Maker reference	847093

FITTING/MANIFOLD INTAKE OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2000 > 2017/APRILIA RS, SX, RX 2006 > 2017-1A010664

	P2R reference	73090
	Maker reference	CM106218

DIFFUSEUR (209-GA) OEM PIAGGIO APRILIA 50 RS, RX, SX 2011 > 2016-CM106218

	P2R reference	73093
	Maker reference	CM106233

DIFFUSEUR 208HM OEM PIAGGIO APRILIA 50 RS 2011 > 20106-CM106233

	P2R reference	149117
	Maker reference	873815

CLAPET 50 A BOX OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX, RS 2006 >/DERBI 50 SENDA 2006 >-1A003630

	P2R reference	149117
	Maker reference	1A003630

CLAPET 50 A BOX OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX, RS 2006 >/DERBI 50 SENDA 2006 >-1A003630

	P2R reference	73051
	Maker reference	CM101719

GICLEUR (68) OEM DERBI 50 SENDA 2018 >-CM101719

	P2R reference	73061
	Maker reference	CM101752

CM101752-JET MAXIMUM 108

	P2R reference	62745
	Maker reference	CM101754

CM101754-JET MAXIMUM

	P2R reference	72720
	Maker reference	414837

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

	P2R reference	72720
	Maker reference	B016774

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

	P2R reference	73066
	Maker reference	CM102101

GICLEUR DE RALENTI (30) OEM PIAGGIO COMMON A LA RANGE-CM102101

	P2R reference	73067
	Maker reference	CM102103

GICLEUR DE RALENTI OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-CM102103

	P2R reference	109062
	Maker reference	830487

SCREW TORX (6X25) OEM PIAGGIO COMMON A LA RANGE-1A000352

	P2R reference	109062
	Maker reference	1A000352

SCREW TORX (6X25) OEM PIAGGIO COMMON A LA RANGE-1A000352

	P2R reference	66664
	Maker reference	484704

CUVE CARBURETTOR SCOOTER OEM PIAGGIO 50 ZIP, NRG, LIBERTY, TYPHOON, FLY, VESPA LX, VESPA-S,/GILERA 50 RUNNER, STALKER, SMT, RCR/APRILIA 50 SR, DERBI SENDA-484704

	P2R reference	70352
	Maker reference	871319

SLEEVE D'ADMISSION OEM PIAGGIO 50 APRILIA RS 2006 >, RS4 2011 >, SX, RX 2006 >/DERBI SENDA 2000 >/GILERA SMT 2006 >, RCR 2006 >-871319

	P2R reference	146199
	Maker reference	288882

FLOTTEUR CARBU DELLORTO PHBN/PHVA OEM PIAGGIO COMMON A LA RANGE-288882

	P2R reference	69463
	Maker reference	847096

CLAMP SLEEVE D'ADMISSION OEM PIAGGIO 50 APRILIA RS4 2011 >, RX, SX 2006 >/DERBI SENDA 2006 >/GILERA SMT 2006 >, RCR 2006 >-847096

	P2R reference	66202
	Maker reference	288865

SCREW TFR (5X14) OEM PIAGGIO COMMON A LA RANGE-288865

	P2R reference	71217
	Maker reference	AP8104097

CLAMP SERRAGE (23-35MM) OEM PIAGGIO COMMON A LA RANGE-AP8104097

	P2R reference	66626
	Maker reference	482942

SPRING DE BOISSEAU OEM PIAGGIO 50 TYPHOON, ZIP, LIBERTY, NRG, FLY/DERBI SENDA 2000 >/GILERA 50 RCR, SMT, STALKER, RUNNER-482942

	P2R reference	66205
	Maker reference	288873

BUSH OF GUIDAGE AIGUILLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288873

	P2R reference	66204
	Maker reference	288872

CIRCLIPS D'AIGUILLE OF CARBURETTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER-288872

	P2R reference	66415
	Maker reference	431654

COVER BOISSEAU DE THROTTLE OEM PIAGGIO COMMON A LA RANGE-431654

	P2R reference	73243
	Maker reference	CM146204

STARTER COMPLETE OEM DERBI 50 SENDA 2018 >/GILERA 50 SMT 2018 >/APRILIA 50 RX, SX 2018 >-CM146204

	P2R reference	66228
	Maker reference	289575

SCREW PLATE CARBURETTOR OEM PIAGGIO COMMON A LA RANGE-289575

	P2R reference	66201
	Maker reference	288863

PLATE DE MAINTIEN STARTER OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-288863

	P2R reference	65670
	Maker reference	0852855

SPRING SCREW AIR OEM PIAGGIO COMMON A LA RANGE-085285

	P2R reference	73102
	Maker reference	CM107701

SCREW REGLAGE AIR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-CM107701

	P2R reference	65751
	Maker reference	152608

SPRING SCREW AIR CARBU OEM PIAGGIO COMMON A LA RANGE-152608

	P2R reference	68725
	Maker reference	828074

SCREW REGLAGE THROTTLE BODY DE THROTTLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-828074

	P2R reference	66200
	Maker reference	288862

SCREW OF MOUNTING CARBURETTOR FLOAT BOWL OEM PIAGGIO COMMON A LA RANGE-288862

	P2R reference	66972
	Maker reference	498409

POCHETTE/KIT JOINTS DE CARBURETTOR DELORTO OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T (POCHETTE)-498409

	P2R reference	68714
	Maker reference	827892

CALIBREUR AIR OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER 50 CC 2T-827892
