Vehicle Exploded View - APRILIA RS 50 RS4 50 2T 2011-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

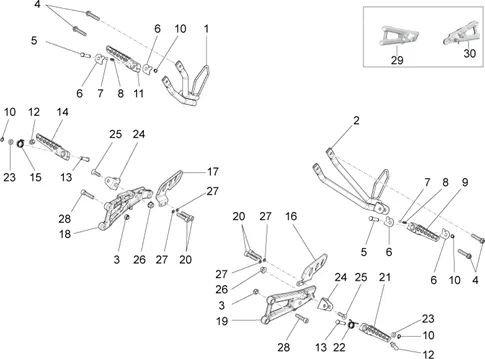

Chassis : 01.020 REPOSE-PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/747/RS4_50_2T_2011-2013_01.020.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/8/2/img/42782.jpg)
1 |
BRACKET PASSENGER FOOTREST RIGHT OEM PIAGGIO APRILIA 50-125 RS 2011 > 2016-897579 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/7/3/7/img/145737.jpg)
2 |
PLATINE PASSENGER FOOTREST LEFT OEM PIAGGIO APRILIA 50-125 RS 2011 > 2016-2B004033 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/3/img/71883.jpg)
3 |
NUT AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8150431 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/2/img/71952.jpg)
4 |
SCREW FLANGE TH (8X40) OEM PIAGGIO COMMON A LA RANGE-AP8152290 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/1/0/img/71710.jpg)
5 |
PIVOT OF REST FOOT (8X35) OEM PIAGGIO COMMON A LA RANGE-AP8134829 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/6/5/8/img/41658.jpg)
6 |
PLATE PASSENGER FOOTREST OEM APRILIA 50-125 RS 2011 >-890208 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/3/img/71163.jpg)
7 |
BILLE BLOCAGE FOOTREST OEM PIAGGIO APRILIA DORSODURO 750-900-1200, RS 50-125, RSV-4 1000, TUONO 1000/MOTO GUZZI 1200 SPORT, BELLAGIO, BREVA, GRISO, NORGE-AP8101861 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/7/img/71437.jpg)
8 |
SPRING DE MAINTIEN FOOTREST OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-AP8121133 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/9/7/img/71797.jpg)
9 |
PASSENGER FOOTREST LEFT OEM PIAGGIO APRILIA 50-125 RS, TUONO, 125 MX, RX, FUTURA, MOJITO-AP8146865 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/8/1/img/71981.jpg)
10 |
CLIPS/CIRCLIPS (D-8) OEM PIAGGIO COMMON A LA RANGE-AP8152409 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/9/6/img/71796.jpg)
11 |
PASSENGER FOOTREST RIGHT OEM PIAGGIO APRILIA 50-125 RS, TUONO, 125 MX, RX, FUTURA, MOJITO-AP8146864 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/8/img/71438.jpg)
12 |
PIVOT FRICTION REST-FOOT OEM PIAGGIO COMMON A LA RANGE MOTO-AP8121134 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/1/1/img/72311.jpg)
13 |
PIVOT REST-FEET OEM PIAGGIO COMMON A LA RANGE-AP8221286 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/4/3/img/71643.jpg)
14 |
FOOTREST PILOTE RIGHT OEM PIAGGIO APRILIA 50-125 RS 1995 > 2010, RS4 2011 >, 125 TUONO 2003 > 2004, AF1 1990 > 1992, 50 EUROPA 1991 > 1992-AP81329576 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/0/1/img/71501.jpg)
15 |
SPRING PASSENGER FOOTREST RIGHT OEM PIAGGIO APRILIA 50-125 RS, TUONO-AP8121939 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/1/6/3/img/70163.jpg)
16 |
866142-PROTECT. ESTRIB. PILOTO IZ. GPR125 09 * More informationQuantity required : 1 |
||||||
17 |
866141-PROTECT. ESTRIB. PILOTO DR. GPR125 09 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/2/3/1/img/43231.jpg)
18 |
PLATINE FOOTREST PILOTE RIGHT OEM PIAGGIO APRILIA 50-125 RS4 2011 >-899557 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/2/3/2/img/43232.jpg)
19 |
PLATINE FOOTREST PILOTE LEFT OEM PIAGGIO APRILIA 50-125 RS4 2011 >-899558 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
20 |
SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152272 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/4/4/img/71644.jpg)
21 |
FOOTREST PILOTE LEFT OEM PIAGGIO APRILIA 50-125 RS 1995 > 2010, RS4 2011 >, 125 TUONO 2003 > 2004, AF1 1990 > 1992, 50 EUROPA 1991 > 1992-AP81329586 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/0/2/img/71502.jpg)
22 |
SPRING OF RETURN FOOTREST PILOTE LEFT OEM PIAGGIO APRILIA 50-125 RS, TUONO-AP8121940 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/4/0/img/63640.jpg)
23 |
WASHER RUBBER (7. 5X14X3) OEM PIAGGIO COMMON A LA RANGE-00003515370 More informationQuantity required : 2 |
||||||
|
24 |
866215-BRACKET BRACKET FOOTREST FRONT APRILIA 50-125 RS-4 2011 > More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/8/img/71928.jpg)
25 |
SCREW BTR HEAD FRAISEE (8X26) OEM PIAGGIO COMMON A LA RANGE-AP8152196 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
26 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/6/img/71406.jpg)
27 |
WASHER PLATE (D5) OEM PIAGGIO COMMIUN A LA RANGE-AP8120592 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/0/img/71830.jpg)
28 |
SCREW BTR (8X25) OEM PIAGGIO COMMON A LA RANGE-AP8150170 More informationQuantity required : 2 |
||||||
|
29 |
PLATINE FOOTREST PILOTE LEFT OEM PIAGGIO APRILIA 50-125 RS4 2011 >-899558 More informationQuantity required : 1 |
||||||
|
30 |
PLATINE FOOTREST PILOTE RIGHT OEM PIAGGIO APRILIA 50-125 RS4 2011 >-899557 More informationQuantity required : 1 |
