Vehicle Exploded View - APRILIA RS 50 RS4 50 2T 2011-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

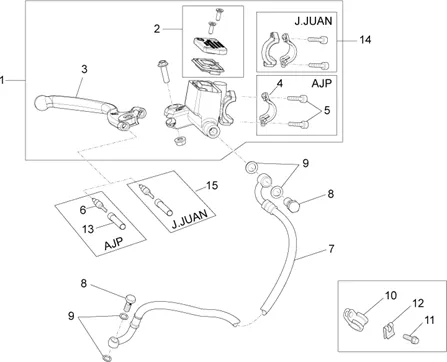

Système frein abs : 06.010 MAÎT. CYL. FREIN AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/747/RS4_50_2T_2011-2013_06.010.PNG)
1 |
85238R - SYSTÈME DE FREINAGE More informationQuantity required : 1 |
||||||
|
1 |
B044194-MA? T. CYL. BRAKE FRONT More informationQuantity required : 1 |
||||||
|
2 |
COVER DE BRAKE MASTER CYLINDER FRONT/REAR OEM PIAGGIO APRILIA 50-125 RS 2011 > 862534 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/1/7/img/70317.jpg)
2 |
COVER MAITRE CYLINDER FRONT OEM PIAGGIO GILERA 50 SMT, RCR 2011 >/DERBI 50 SENDA 2010 >/APRILIA 50 RS4 2011 >, SX 2018 >-867283 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/0/5/1/img/70051.jpg)
3 |
BRAKE LEVER RIGHT AJP OEM PIAGGIO APRILIA 50-125 RS 2011 > 2013-864339 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/3/2/img/72832.jpg)
3 |
LEVER BRAKE J-JUAN 50 A BOX OEM PIAGGIO GILERA 50 SMT, RCR 2011 >/APRILIA 50-125 RS4 2011 > 190 MM-B044198 More informationQuantity required : 1 |
||||||
|
4 |
00H02100901-CLAMP * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/6/8/img/63568.jpg)
5 |
SCREW TH (5X12) OEM PIAGGIO COMMON A LA RANGE-00000004512 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/5/8/img/67958.jpg)
6 |
CONTACTEUR LAMP STOP OEM PIAGGIO 125-500 MP3, X10, X-EVO, BEVERLY, RANGE VESPA/GILERA 125-300-500 NEXUS/APRILIA 750-900 SHIVER, DORSODURO, 125-500 SCARABEO-642032 More informationQuantity required : 1 |
||||||
|
7 |
85238R - SYSTÈME DE FREINAGE More informationQuantity required : 1 |
||||||
|
7 |
B044195-TUBE BRAKE FRONT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/9/5/8/img/69958.jpg)
8 |
862494 - R-TORNILLO RACORD HIDRAULICO More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/0/2/img/70302.jpg)
8 |
FITTING OF BRAKE OEM PIAGGIO GILERA 50 SMT 2011 >/DERBI 50 SENDA 2005 >-867237 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/0/3/img/70303.jpg)
9 |
GASKET/WASHER HOSE OF BRAKE OEM PIAGGIO 50 DERBI 50 SENDA 2000 >/APRILIA RX, SX, RS, TUONO/GILERA 50 SMT, RCR-867238 More informationQuantity required : 4 |
||||||
|
10 |
AP8134167-PLATE HOSE BRAKE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
11 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
12 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/0/img/72270.jpg)
13 |
RUBBER CONTACTEUR DE STOP OEM DERBI 50 SENDA 2018 >/GILERA 50 SMT 2018 >-AP8220135 More informationQuantity required : 1 |
||||||
|
14 |
B044408-KIT CAVALIER More informationQuantity required : 1 |
||||||
|
15 |
B044409-KIT INTERRUPTEUR STOP More informationQuantity required : 1 |
