Vehicle Exploded View - APRILIA RS 125 1999-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

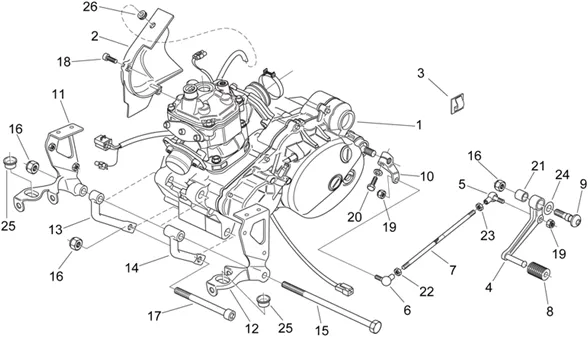

Moteur : 29.25 MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/272/RS_125_1999-2005_29.25.PNG)
1 |
Moteur 122 STRADA |
||||||
|
1 |
|
||||||
|
1 |
|
||||||
|
1 |
|
||||||
|
1 |
|
||||||
|
1 |
AP8106950 - MOTEUR More informationQuantity required : 1 |
||||||
|
1 |
AP8176045 - MOTORE More informationQuantity required : 1 |
||||||
|
2 |
AP8106315 - CARTER PIGNON, GRIS More informationQuantity required : 1 |
||||||
|
3 |
AP8120708 - GUIDE-CABLE ADH.NOIR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/5/0/4/img/45504.jpg)
4 |
SELECTEUR/LEVER DE SPEED OEM PIAGGIO APRILIA 125 RS 1995 > 2010, TUONO 2000 > 2003, AF1 1990 > 1992-AP8106013 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/5/img/72185.jpg)
5 |
ROTULE DE GEAR LEVER (FILETAGE A RIGHT) OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI ET APRILIA-AP8210007 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/6/8/img/71268.jpg)
6 |
ROTULE DE GEAR LEVER (FILTAGE A LEFT) OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8110053 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/3/5/img/46735.jpg)
7 |
GEARBOX LINKAGE ROD "PIAGGIO GENUINE PARTS" APRILIA 50 RS 1993>1998, 125 RS 1996>2010 -AP8121163 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/2/img/71422.jpg)
8 |
RUBBER BRAKE LEVER REAR OU SELECTEUR OEM PIAGGIO FOR MOTORCYCLE-GUZZI/APRILIA-AP8120912 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/5/6/img/71456.jpg)
9 |
PIVOT PEDAL OF BRAKE OEM PIAGGIO APRILIA 50-125 RS, TUONO, 125 AF1 FUTURA-AP8121284 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/1/5/8/img/49158.jpg)
10 |
GEARBOX CONTROL CONNECTING ROD "PIAGGIO GENUINE PART" APRILIA 125 RS, TUONO, CLASSIC -AP8135726- More informationQuantity required : 1 |
||||||
|
11 |
AP8135719 - PLAQUE AV D MOTEUR; More informationQuantity required : 1 |
||||||
|
12 |
AP8135720 - PLAQUE AV G MOTEUR; More informationQuantity required : 1 |
||||||
|
13 |
AP8135786 - SUPPORT D MOTEUR; More informationQuantity required : 1 |
||||||
|
14 |
AP8135787-BRACKET G ENGINE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/7/2/img/50872.jpg)
15 |
SCREW (M10X205) OEM APRILIA COMMON A LA RANGE-AP8150412 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/5/img/71885.jpg)
16 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8150436 More informationQuantity required : 3 |
||||||
|
17 |
AP8150310-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/5/img/71815.jpg)
18 |
SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8150044 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
19 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150430 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
20 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/2/9/img/46729.jpg)
21 |
AP8121147 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/8/img/71918.jpg)
22 |
NUT ROD OF SELECTEUR OEM APRILIA COMMON A LA RANGE-AP8152138 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/2/img/71812.jpg)
23 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150026 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/2/img/71482.jpg)
24 |
WASHER SPRING (D10. 5) OEM PIAGGIO COMMON A LA RANGE-AP81216976 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/5/9/5/img/46595.jpg)
25 |
RUBBER MOUNT OEM PIAGGIO COMMON A LA RANGE-AP8120275 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/3/img/71393.jpg)
26 |
RUBBER (7X15) OEM PIAGGIO COMMON A LA RANGE-AP8120405 More informationQuantity required : 1 |
