Vehicle Exploded View - APRILIA RS 125 1999-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

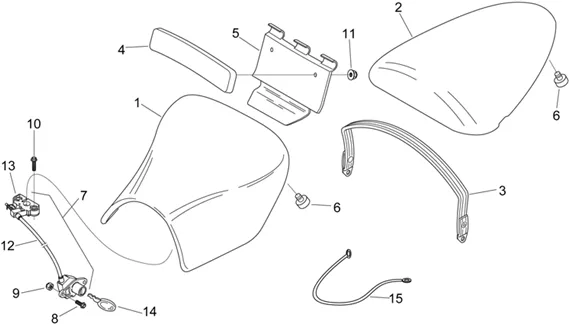

Chassis : 28.12 GROUPE SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/272/RS_125_1999-2005_28.12.PNG)
1 |
AP8129220 - SELLE PILOTE ROUGE; More informationQuantity required : 1 |
||||||
|
1 |
AP8129278 - SELLE PILOTE NOIRE; More informationQuantity required : 1 |
||||||
|
1 |
AP8129337 - SELLE PILOTE NOIRE; More informationQuantity required : 1 |
||||||
|
1 |
AP8229411 - SELLA PILOTA NERA More informationQuantity required : 1 |
||||||
|
2 |
AP8129221 - SELLE PASSAGER NOIRE; More informationQuantity required : 1 |
||||||
|
2 |
AP8129247 - SELLE PASS.ROUGE; More informationQuantity required : 1 |
||||||
|
2 |
AP8129287 - SELLE PASSAGER JAUNE; More informationQuantity required : 1 |
||||||
|
2 |
AP8129338 - SELLE PASSAGER NOIRE; More informationQuantity required : 1 |
||||||
|
2 |
AP8229412 - SELLA PASSEGGERO NERA More informationQuantity required : 1 |
||||||
|
3 |
Courroie pass.roug.; |
||||||
|
3 |
AP8229314 - COURROIE PASSAGER, JAUNE; More informationQuantity required : 1 |
||||||
|
3 |
Courroie passager, noir; |
||||||
|
3 |
Courroie passager, noir |
||||||
|
3 |
AP8129222 - COURROIE PASSAGER, NOIR; More informationQuantity required : 1 |
||||||
|
4 |
AP8129223-COUSSIN DOSSIER More informationQuantity required : 1 |
||||||
|
5 |
AP8139137 - ABATT. P-OBJET GRIS S.; More informationQuantity required : 1 |
||||||
|
5 |
Abatt. p-objet.gris g.; |
||||||
|
5 |
AP8148437 - ABATT.PORTE-OBJ., GRIS; More informationQuantity required : 1 |
||||||
|
5 |
AP8148671 - ABATT.PORTE-OBJ., GRIS; More informationQuantity required : 1 |
||||||
|
5 |
Abattant porte-objets noir; |
||||||
|
5 |
AP8149905 - ABATT. PORTE-OBJETS GRIS D.; More informationQuantity required : 1 |
||||||
|
5 |
AP8158743 - ABATTANT PORTE-OBJETS NOIR; More informationQuantity required : 1 |
||||||
|
5 |
AP8158958 - ABATTANT PORTE-OBJETS GRIS; More informationQuantity required : 1 |
||||||
|
5 |
AP8168287 - ABATT. PORTE-OBJETS NOIR; More informationQuantity required : 1 |
||||||
|
5 |
AP8168290 - ABATTANT PORTE-OBJETS GRIS; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/1/img/72281.jpg)
6 |
BUFFER RUBBER DU LOGEMENT DE SEAT OEM APRILIA-AP8220349 More informationQuantity required : 4 |
||||||
|
7 |
AP8102928 - SERRURE SELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
8 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
9 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150430 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
10 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
11 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066 More informationQuantity required : 4 |
||||||
|
12 |
AP8114389-CABLE LOCK More informationQuantity required : 1 |
||||||
|
13 |
AP8102913-PL. FIX. SEAT PASS. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/4/2/3/img/45423.jpg)
14 |
EBAUCHE DE CLE FRAISEE WITHOUT TRANSPONDEUR OEM APRILIA COMMON A LA RANGE-AP8104613 More informationQuantity required : 1 |
||||||
|
15 |
AP8102502-CABLE ACCROCHAGE CASQUE More informationQuantity required : 1 |
