Vehicle Exploded View - APRILIA RS 125 1999-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

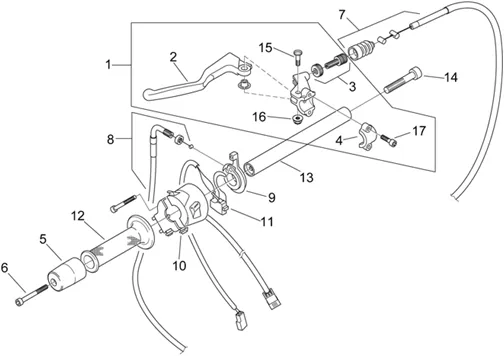

Chassis : 28.17 COMMANDES GCHE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/272/RS_125_1999-2005_28.17.PNG)
1 |
AP8118439 - COMMANDE EMBRAYAGE CPL; More informationQuantity required : 1 |
||||||
|
2 |
AP8118432 - LEVIER EMBRAYAGE NU; More informationQuantity required : 1 |
||||||
|
3 |
CLUTCH CABLE ADJUSTER "PIAGGIO GENUINE PART" APRILIA 125 RX, SX, RS, MX, TUONO -852330- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/6/1/7/img/56617.jpg)
4 |
CAVALIER LEVER CLUTCH OEM PIAGGIO APRILIA 50 CLASSIC, 125-250 RS-AP8218077 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/2/9/img/71229.jpg)
5 |
HANDLEBAR END OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8104572 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/4/4/img/50844.jpg)
6 |
SCREW BTR 6X60) OEM PIAGGIO COMMON A LA RANGE-AP8150157 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/1/9/0/img/46190.jpg)
7 |
CABLE/CONTROL/TRANSMISSION CLUTCH OEM PIAGGIO APRILIA 125 RS 1995 > 2010, TUONO 2003 > 2004-AP8114467 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/1/1/1/img/46111.jpg)
8 |
CHOKE TRANSMISSION CABLE "PIAGGIO GENUINE PART" APRILIA 125 RS 1996>2010 -AP8114331- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/3/0/0/img/46300.jpg)
9 |
LEVER DE STARTER OEM PIAGGIO APRILIA 125 RS, TUONO, AF1, CLASSIC, 650 PEGASO-AP8118308 More informationQuantity required : 1 |
||||||
|
10 |
AP8124173 - DEVIO GCHE+CABL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/0/img/71570.jpg)
10 |
COMMODO/SWITCH LEFT OEM APRILIA 125 RS 1999 < 2005/650 PEGASO 2001 < 2004-AP8124915 More informationQuantity required : 1 |
||||||
|
11 |
AP8124152-POUSSOIR CRONO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/9/7/img/46297.jpg)
12 |
POIGNEES RUBBER (PAIRE) OEM APRILIA 50-125 RS 2010 <-AP8118287 More informationQuantity required : 1 |
||||||
|
13 |
LEFT HALF HANDLEBAR "PIAGGIO GENUINE PART" APRILIA 125 RS 1995>2005, AF1 1990>1992 -AP8118324- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/8/img/71818.jpg)
14 |
SCREW BTR (10X60) OEM PIAGGIO COMMON ALA RANGE-AP8150049 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/9/4/img/72194.jpg)
15 |
SCREW LEVER CLUTCH OEM APRILIA 50-125 RS/MOTO GUZZI 750 BREVA, V7, V9-AP8213028 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/6/0/img/71360.jpg)
16 |
NUT AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP8118490 More informationQuantity required : 1 |
||||||
|
17 |
AP8118517-SCREW More informationQuantity required : 2 |
