Vehicle Exploded View - APRILIA RS 125 1999-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

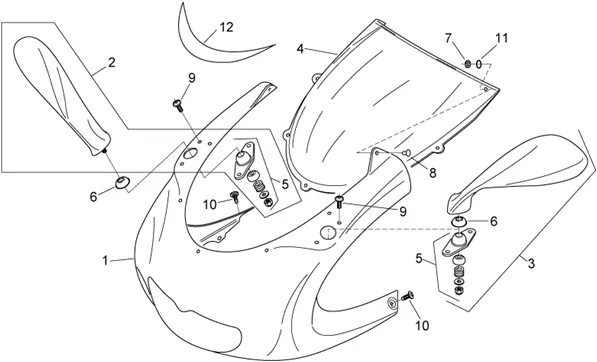

Chassis : 28.08 CARROSSERIE AV. I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/272/RS_125_1999-2005_28.08.PNG)
1 |
AP8268385 - FRONTALE CARENA V.NERO APRILIA More informationQuantity required : 1 |
|||||||||
|
1 |
CENTRALE CARENA V.BLU FUMI N/D |
|||||||||
|
1 |
AP8148665 - DEV.CARENE P.NOIR AP.; More informationQuantity required : 1 |
|||||||||
|
1 |
AP8149025 - AVANT CARENAGE, GRIS N; More informationQuantity required : 1 |
|||||||||
|
1 |
AP8149899 - DEV.CARENE P.NOIR D.; More informationQuantity required : 1 |
|||||||||
|
1 |
AP8158736 - AVANT CARENAGE, NOIR; More informationQuantity required : 1 |
|||||||||
|
1 |
AP8168617 - AVANT CARENAGE, NOIR; More informationQuantity required : 1 |
|||||||||
|
1 |
AP8258567 - AVANT CARENE GRIS; More informationQuantity required : 1 |
|||||||||
|
1 |
AP8258817 - AVANT CARENAGE, NOIR More informationQuantity required : 1 |
|||||||||
|
1 |
AP8268158 - FRONTALE CARENA V.NERO APRILIA More informationQuantity required : 1 |
|||||||||
|
1 |
AP8268266 - FRONTALE CARENA V.BIANCO APR. More informationQuantity required : 1 |
|||||||||
|
1 |
AP8268379 - FRONTALE CARENA V.NERO APRILIA More informationQuantity required : 1 |
|||||||||
|
1 |
AP8268456 - FRONTALE CARENA V.NERO APRILIA More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/9/7/img/45197.jpg)
2 |
RIGHT MIRROR OEM PIAGGIO 50-125-250 RS 1999 > 2010, 1000 RSV-2 2000 > 2003, FALCO 2000 > 2003-AP8102632 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/9/8/img/45198.jpg)
3 |
LEFT MIRROR OEM PIAGGIO 50-125-250 RS 1999 > 2010, 1000 RSV-2 2000 > 2003, FALCO 2000 > 2003-AP8102633 More informationQuantity required : 1 |
|||||||||
|
4 |
AP8148663 - VITRE COUPOLE; More informationQuantity required : 1 |
|||||||||
|
4 |
WINDSHIELD "PIAGGIO GENUINE PART" APRILIA 50-125-250 RS -AP8138916- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/2/5/2/img/45252.jpg)
5 |
KIT MONTAGE MIRROR OEM PIAGGIO 50-125-250 RS 2000 >-AP8102909 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/5/1/img/45151.jpg)
6 |
CUVETTE ARTICULATION MIRROR OEM PIAGGIO 50-125-250 RS APRILIA 1999 >-AP8102341 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
7 |
WASHER ELASTIC (5) OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150450 More informationQuantity required : 9 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/0/img/71750.jpg)
8 |
RIVET MOUNTING FAIRING OEM PIAGGIO APRILIA 50-125 RS, TUONO, 1000 CAPONORD, RSV-2, ATLANTIC, SCARABEO-AP8144109 More informationQuantity required : 9 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
9 |
SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152246 More informationQuantity required : 4 |
|||||||||
|
10 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
10 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/1/img/71181.jpg)
11 |
RUBBER DE FAIRING OEM PIAGGIO COMMON A LA RANGE APRILIA-AP8102504 More informationQuantity required : 9 |
|||||||||
|
12 |
AP8157105-DEC. VERRE COUPOLE More informationQuantity required : 1 |
|||||||||
