Vehicle Exploded View - APRILIA RS 125 1995-1995
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

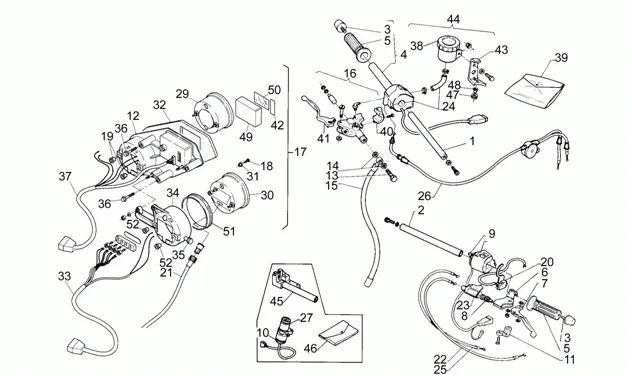

Chassis : 15 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/268/RS_125_1995-1995_15.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/3/0/4/img/46304.jpg)
1 |
RIGHT HALF HANDLEBAR "PIAGGIO GENUINE PART" APRILIA 125 RS 1995>2005, AF1 1990>1992 -AP8118343- More informationQuantity required : 1 |
||||||
2 |
LEFT HALF HANDLEBAR "PIAGGIO GENUINE PART" APRILIA 125 RS 1995>2005, AF1 1990>1992 -AP8118324- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/2/9/img/71229.jpg)
3 |
HANDLEBAR END OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8104572 More informationQuantity required : 2 |
||||||
|
3 |
AP8104574 - MASSE ANTI VIBRATOIRE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/9/9/img/46299.jpg)
4 |
THROTTLE GRIP OEM PIAGGIO APRILIA 50 RS 1999 > 2005, 125 RS 1995 > 2010, AF1-AP8118307 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/2/9/7/img/46297.jpg)
5 |
POIGNEES RUBBER (PAIRE) OEM APRILIA 50-125 RS 2010 <-AP8118287 More informationQuantity required : 1 |
||||||
|
6 |
AP8118357 - LEVIER EMBRAY AVEC SUP More informationQuantity required : 1 |
||||||
|
7 |
AP8118288 - LEVIER EMBRAYAGE More informationQuantity required : 1 |
||||||
|
8 |
AP8118348-REGLAGE LEVER CLUTCH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/3/0/0/img/46300.jpg)
9 |
LEVER DE STARTER OEM PIAGGIO APRILIA 125 RS, TUONO, AF1, CLASSIC, 650 PEGASO-AP8118308 More informationQuantity required : 1 |
||||||
|
10 |
Câblage commutateur |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/6/1/7/img/56617.jpg)
11 |
CAVALIER LEVER CLUTCH OEM PIAGGIO APRILIA 50 CLASSIC, 125-250 RS-AP8218077 More informationQuantity required : 1 |
||||||
|
12 |
AP8124197 - SUPPORT COMPTE-TOURS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
13 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
14 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 2 |
||||||
|
15 |
AP8113509 - TUBE FREIN AV More informationQuantity required : 1 |
||||||
|
16 |
M/CYLINDRE FREIN D=12 |
||||||
|
17 |
Tableau de bord; |
||||||
|
18 |
AP8123553-SCREW CAP More informationQuantity required : 1 |
||||||
|
19 |
Caoutchouc compte-tours |
||||||
|
20 |
AP8124152-POUSSOIR CRONO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/1/1/3/img/46113.jpg)
21 |
TRANSMISSION SPEEDOMETER CABLE "PIAGGIO GENUINE PART" APRILIA 125 RS 1995>2005 -AP8114334 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/1/9/0/img/46190.jpg)
22 |
CABLE/CONTROL/TRANSMISSION CLUTCH OEM PIAGGIO APRILIA 125 RS 1995 > 2010, TUONO 2003 > 2004-AP8114467 More informationQuantity required : 1 |
||||||
|
23 |
AP8120467 - CACHE-REGLAGE EMBRAYAGE More informationQuantity required : 1 |
||||||
|
24 |
AP8118420 - BOUTON DEMARRAGE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/1/1/1/img/46111.jpg)
25 |
CHOKE TRANSMISSION CABLE "PIAGGIO GENUINE PART" APRILIA 125 RS 1996>2010 -AP8114331- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/1/0/8/img/46108.jpg)
26 |
AP8114320 - CABLE GAZ AVEC DEDOUBLEUR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/8/0/img/45880.jpg)
27 |
MAIN SWITCH-STEERING LOCK "PIAGGIO GENUINE PART" APRILIA 50-125-250 RS 1995>1998, 50 RX 1995>2002, MX 2002>2003, 125-650 PEGASO, 125 FUTURA -AP8112710- More informationQuantity required : 1 |
||||||
|
28 |
AP8124173 - DEVIO GCHE+CABL. More informationQuantity required : 1 |
||||||
|
29 |
AP8124225 - COMPTE-TOURS More informationQuantity required : 1 |
||||||
|
30 |
AP8124224 - COMPTEUR KILOMETRIQUE More informationQuantity required : 1 |
||||||
|
31 |
AP8124253 - DOUILLE FIXATION REMBOURRAGE More informationQuantity required : 1 |
||||||
|
32 |
AP8124198 - JOINT MOUSSE More informationQuantity required : 1 |
||||||
|
33 |
Câblage tachymètre |
||||||
|
34 |
Support tachymètre |
||||||
|
35 |
AP8131176-POUSSOIR RAZ More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/4/img/71934.jpg)
36 |
SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152267 More informationQuantity required : 5 |
||||||
|
37 |
Câblage compte-tr-multif. |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/0/6/img/71306.jpg)
38 |
CAP BOCAL DE BRAKE MASTER CYLINDER OEM PIAGGIO MOTO-GUZZI 750 V7, NEVADA, BREVA/APRILIA 125 MX, RS, 650 PEGASO, 1000 RSN-2, 1200 CAPONORD, DORSODURO-AP8113553 More informationQuantity required : 1 |
||||||
|
39 |
Kit rév. pompe AV |
||||||
|
40 |
AP8213078-CAVALIER More informationQuantity required : 1 |
||||||
|
41 |
AP8118315 - LEVIER FREIN AVANT More informationQuantity required : 1 |
||||||
|
42 |
AP8124195 - BOUCHON DISP.MULTIF. More informationQuantity required : 1 |
||||||
|
43 |
AP8121892 - SUP.RES.HUILE FREINS More informationQuantity required : 1 |
||||||
|
44 |
AP8133873-TANK OIL FRENI More informationQuantity required : 1 |
||||||
|
45 |
AP8201564-LOCK SEAT More informationQuantity required : 1 |
||||||
|
46 |
Kit serrure; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/3/img/71393.jpg)
47 |
RUBBER (7X15) OEM PIAGGIO COMMON A LA RANGE-AP8120405 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/5/9/7/img/46597.jpg)
48 |
SPACER OF REAR LIGHT OU BRAKE MASTER CYLINDER REAR OEM PIAGGIO-AP8120278 More informationQuantity required : 1 |
||||||
|
49 |
AP8124226 - DISPOS. MULTIFONCT. More informationQuantity required : 1 |
||||||
|
50 |
AP8124194 - VITRE DISP. MULTIF. More informationQuantity required : 1 |
||||||
|
51 |
AP8124252 - JOINT TACHYMETRE More informationQuantity required : 1 |
||||||
|
52 |
AP8124254 - CAOUTCHOUC TACHYM. More informationQuantity required : 1 |
