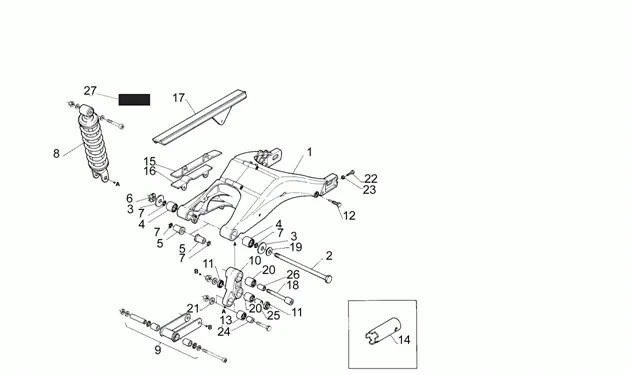

Chassis : 12 FOURCHE ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/268/RS_125_1995-1995_12.PNG)
1 |
AP8135961 - BRAS OSCILLANT POLI/LAVE; More informationQuantity required : 1 |
||||||
|
2 |
AP8125627 - PIVOT FOURCHE AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/0/9/9/img/45099.jpg)
3 |
AP8101341 - RONDELLE D'APPUI More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/2/4/img/45824.jpg)
4 |
ROLLER CAGE (22X28X16) OEM PIAGGIO COMMON A LA RANGE-AP8110067 More informationQuantity required : 2 |
||||||
|
5 |
AP8121121 - DOUILLE AXE FOURCHE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/5/4/img/50854.jpg)
6 |
AP8150299 - BAGUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/5/9/8/img/46598.jpg)
7 |
O RING OF OEM MOPED SWINGARM OEM APRILIA 125 RS 1995 < 2010-AP8120280 More informationQuantity required : 4 |
||||||
|
8 |
Amortisseur s.p pl. |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/3/5/6/img/42356.jpg)
8 |
REAR SHOCK ABSORBER "PIAGGIO GENUINE PART" APRILIA 125 RS, TUONO -895569- More informationQuantity required : 1 |
||||||
|
9 |
AP8132634 - BIELLE SIMPLE; More informationQuantity required : 1 |
||||||
|
10 |
AP8135362 - DOUBLE BIELLETTE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/9/img/71399.jpg)
11 |
GASKET OF COUPLE CONIQUE OEM PIAGGIO MOTO-GUZZI BREVA, STELVIO, NORGE, GRISO-AP8120485 More informationQuantity required : 2 |
||||||
|
12 |
AP8135396-ROD BUTEE PLAQ. BRAKE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/2/2/img/45822.jpg)
13 |
AP8110064 - CAGE A ROULEAUX More informationQuantity required : 1 |
||||||
|
14 |
AP8101945 - CLE POUR ECROU More informationQuantity required : 1 |
||||||
|
15 |
AP8120793 - PATIN G-CHA?NE SUP. More informationQuantity required : 1 |
||||||
|
16 |
AP8120794-PATIN G-CHA? NE INF * More informationQuantity required : 1 |
||||||
|
17 |
AP8131623 - CARTER CHA?NE, NOIR; More informationQuantity required : 1 |
||||||
|
18 |
AP8150346-SCREW More informationQuantity required : 1 |
||||||
|
19 |
AP8152063 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/2/1/img/45821.jpg)
20 |
CAGE A AIGUILLE DE BIELETTE SUSPENSION REAR OEM PIAGGIO APRILIA 50 MX, SX, RX, 125 RS, TUAREG, TUONO, PEGASO-AP8110063 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/0/img/71270.jpg)
21 |
OIL SEAL (18X24X3) OEM PIAGGIO COMMON A LA RANGE-AP8110068 More informationQuantity required : 1 |
||||||
|
22 |
AP8152261-SCREW TENSION CHA? NE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/9/5/img/97095.jpg)
23 |
AP8152262 - ECROU BAS More informationQuantity required : 2 |
||||||
|
24 |
AP8121847 - AXE BIELLE DOUBLE More informationQuantity required : 1 |
||||||
|
25 |
AP8121845-SHAFT OF BIELLE More informationQuantity required : 1 |
||||||
|
26 |
AP8121846 - AXE BIELLE DOUBLE More informationQuantity required : 1 |
||||||
|
27 |
C/C CUVE CARBU. |
