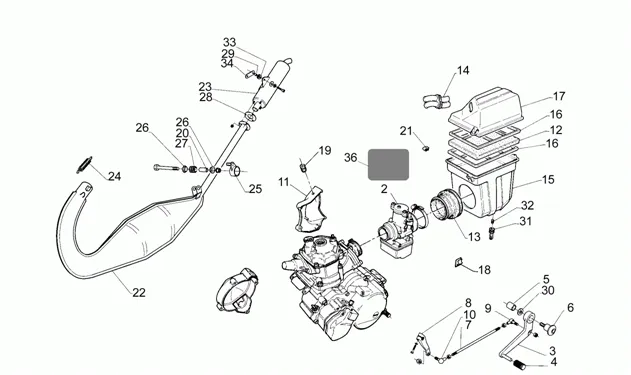

Chassis : 13 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/268/RS_125_1995-1995_13.PNG)
2 |
Carburateur |
||||||
|
2 |
CARBURAT. PHBH28BD |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/5/0/4/img/45504.jpg)
3 |
SELECTEUR/LEVER DE SPEED OEM PIAGGIO APRILIA 125 RS 1995 > 2010, TUONO 2000 > 2003, AF1 1990 > 1992-AP8106013 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/3/img/72273.jpg)
4 |
RUBBER OF GEAR LEVER OEM PIAGGIO APRILIA 50-125 RS, CLASSIC, 125 FUTURA, 600-650 PEGASO/MOTO-GUZZI 750 BREVA-AP8220189 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/2/9/img/46729.jpg)
5 |
AP8121147 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/5/6/img/71456.jpg)
6 |
PIVOT PEDAL OF BRAKE OEM PIAGGIO APRILIA 50-125 RS, TUONO, 125 AF1 FUTURA-AP8121284 More informationQuantity required : 1 |
||||||
|
7 |
TIGE DE SELECTEUR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/1/5/8/img/49158.jpg)
8 |
GEARBOX CONTROL CONNECTING ROD "PIAGGIO GENUINE PART" APRILIA 125 RS, TUONO, CLASSIC -AP8135726- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/5/img/72185.jpg)
9 |
ROTULE DE GEAR LEVER (FILETAGE A RIGHT) OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI ET APRILIA-AP8210007 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/6/8/img/71268.jpg)
10 |
ROTULE DE GEAR LEVER (FILTAGE A LEFT) OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8110053 More informationQuantity required : 1 |
||||||
|
11 |
AP8106315 - CARTER PIGNON, GRIS More informationQuantity required : 1 |
||||||
|
12 |
AIR FILTER"PIAGGIO GENUINE PART" APRILIA 125 RS 1995>2010, AF1 1990>1992, TUONO 2003>2004 -AP81020800P More informationQuantity required : 1 |
||||||
|
12 |
AIR FILTER"PIAGGIO GENUINE PART" APRILIA 125 RS 1995>2010, AF1 1990>1992, TUONO 2003>2004 -AP81020800P More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/4/1/img/46641.jpg)
13 |
SLEEVE D'ASPIRATION ENTRE CARBURETTOR ET HOUSING OEM PIAGGIO APRILIA 125 RS 1995 > 1998-AP8120783 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/3/4/img/46634.jpg)
14 |
SLEEVE D'ASPIRATION OEM APRILIA 125 RS, RX, SX 2010 <-AP8120748 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/4/0/3/2/img/54032.jpg)
15 |
BODY DE AIR FILTER OEM PIAGGIO APRILIA 125 RS, TUONO 1995 > 2010-AP8178561 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/6/4/7/img/48647.jpg)
16 |
GRILLE LATCH AIR FILTER OEM PIAGGIO 125 RS APRILIA 2005 <-AP8131121 More informationQuantity required : 2 |
||||||
|
17 |
AP8168042-COVER BODY FILTER More informationQuantity required : 1 |
||||||
|
18 |
AP8120708 - GUIDE-CABLE ADH.NOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/3/img/71393.jpg)
19 |
RUBBER (7X15) OEM PIAGGIO COMMON A LA RANGE-AP8120405 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/2/0/img/46720.jpg)
20 |
AP8121058 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
21 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 5 |
||||||
|
22 |
AP8119375 - POT D'ECHAPPEMENT More informationQuantity required : 1 |
||||||
|
22 |
Pot d'échappement |
||||||
|
23 |
Silencieux |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/0/9/4/img/45094.jpg)
24 |
SPRING EXHAUST OEM APRILIA 50-125 COMMON A LA RANGE 2005 <-AP8101259 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/2/4/img/46724.jpg)
24 |
EXHAUST SPRING "PIAGGIO GENUINE PART" APRILIA 125 RS, TUONO, PEGASO, AF1 -AP8121091 More informationQuantity required : 2 |
||||||
|
25 |
AP8135289-BRACKET CENTRAL SILENCER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/0/9/6/img/45096.jpg)
26 |
AP8101284 - RONDELLE More informationQuantity required : 2 |
||||||
|
27 |
AP8101285 - SILENTBLOC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/5/8/img/46658.jpg)
28 |
GASKET SILENCER OEM PIAGGIO 125 RS APRILIA 2010 <-AP8120812 More informationQuantity required : 1 |
||||||
|
29 |
AP8121716-" BUSH EN " " T " " " More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/2/img/71482.jpg)
30 |
WASHER SPRING (D10. 5) OEM PIAGGIO COMMON A LA RANGE-AP81216976 More informationQuantity required : 1 |
||||||
|
31 |
Reniflard corps filtre |
||||||
|
32 |
Filtre pour reniflard |
||||||
|
33 |
AP8120638 - SILENTBLOC More informationQuantity required : 1 |
||||||
|
34 |
Plaque silencieux; |
||||||
|
36 |
Protection carburateur |
