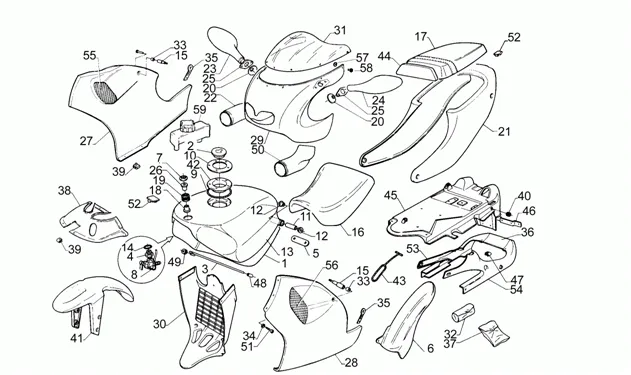

Chassis : 10 CARROSSERIE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/268/RS_125_1995-1995_10.PNG)
1 |
Réservoir essence; |
||||||
|
2 |
AP8202380 - TAPPO BENZINA More informationQuantity required : 1 |
||||||
|
3 |
Tige ouv. réservoir |
||||||
|
4 |
Raccord rob. ess. |
||||||
|
5 |
AP8120815-SPACER TANK More informationQuantity required : 1 |
||||||
|
6 |
AP8126356 - GARDE-BOUE BAS NOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/9/img/71489.jpg)
7 |
WASHER FAIRING OEM PIAGGIO APRILIA 50-125 RS, RX, SX, 1000 CAPONORD/MOTO-GUZZI 1200 STELVIO-AP8121819 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/2/2/7/img/45227.jpg)
8 |
ROBINET FUEL OEM PIAGGIO APRILIA 125 RS 1995 > 1998-AP8102802 More informationQuantity required : 1 |
||||||
|
9 |
AP8120702-GASKET ORIFICE REMPL * More informationQuantity required : 1 |
||||||
|
10 |
AP8102361 - BAGUE BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/5/9/img/50959.jpg)
11 |
SPACER- FOR FUEL TANK MOUNTING "PIAGGIO GENUINE PART" APRILIA 50-125 RS, TUONO, 125 AF1 -AP8152153- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/6/3/1/img/46631.jpg)
12 |
RUBBER MOUNT/RUBBER EN T OEM PIAGGIO COMMON A LA RANGE-AP8120709 More informationQuantity required : 2 |
||||||
|
13 |
COUVRE RESERVOIR NOIR |
||||||
|
13 |
COUVRE RESERVOIR BLEU RS |
||||||
|
14 |
Joint torique |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/4/9/img/46949.jpg)
15 |
AP8121867 - DOUILLE SPECIALE More informationQuantity required : 2 |
||||||
|
16 |
Selle pilote noire; |
||||||
|
17 |
Selle pass. n s/san.; |
||||||
|
17 |
SELLE PASSAGER BLEU |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/0/1/img/57001.jpg)
18 |
AP8221106 - DOUILLE LEVIER FREIN AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/3/img/71403.jpg)
19 |
RUBBER TANK OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8120557 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/1/5/1/img/45151.jpg)
20 |
CUVETTE ARTICULATION MIRROR OEM PIAGGIO 50-125-250 RS APRILIA 1999 >-AP8102341 More informationQuantity required : 2 |
||||||
|
21 |
DOSSSERET NOIR RS 125 |
||||||
|
21 |
COQUE ARRIERE RS 125 95 |
||||||
|
22 |
Convoyeur D; |
||||||
|
23 |
Miroir rétroviseur dte |
||||||
|
24 |
Miroir rétroviseur gche |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/2/5/2/img/45252.jpg)
25 |
KIT MONTAGE MIRROR OEM PIAGGIO 50-125-250 RS 2000 >-AP8102909 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/5/img/71435.jpg)
26 |
BUSH EN T (D8) OEM PIAGGIO COMMON A LA RANGE-AP8121114 More informationQuantity required : 1 |
||||||
|
27 |
Flanc de caren. rr rs 95 |
||||||
|
27 |
Flanc D, noir; |
||||||
|
28 |
Flanc G, noir; |
||||||
|
28 |
Flanc G, noir; |
||||||
|
28 |
Flanc g. rs125 95 |
||||||
|
29 |
Avant carénage, noir; |
||||||
|
29 |
CARENAGE ROUGE/BLEU |
||||||
|
30 |
AP8138469 - GRILLE RADIATEUR NOIRE; More informationQuantity required : 1 |
||||||
|
31 |
AP8131916 - VITRE COUPOLE; More informationQuantity required : 1 |
||||||
|
32 |
Trousse à outils |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/1/img/71401.jpg)
33 |
NUT (M5) WITH INSERT RUBBER OEM PIAGGIO COMMON A LA RANGE DERBI, APRILIA ET MOTO-GUZZI-AP8120531 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/4/4/8/6/img/164486.jpg)
34 |
WASHER PLATE NYLON (10X5. 3X1) OEM PIAGGIO COMMON A LA RANGE-AP8120591 More informationQuantity required : 20 |
||||||
|
35 |
Plaque inf. carén.; |
||||||
|
36 |
Couvre-str.selle ctr., noir |
||||||
|
37 |
EMBLEME RS 95 ROUGE |
||||||
|
37 |
Embleme rs 95 noire |
||||||
|
38 |
Fermeture inf. bulle; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
39 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 20 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/6/4/img/97064.jpg)
40 |
RUBBER GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-AP8120223 More informationQuantity required : 2 |
||||||
|
41 |
Garde-boue AV noir; |
||||||
|
41 |
GARDE BOUE AV BLEU RS 95 |
||||||
|
42 |
AP8121784-TUBULURE REMPLISSAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/6/img/71386.jpg)
43 |
SANGLE ELASTIC OEM PIAGGIO COMMON A LA RANGE-AP8120177 More informationQuantity required : 1 |
||||||
|
44 |
Coussin dossier; |
||||||
|
45 |
P-plaque/Vide-poches; |
||||||
|
46 |
AP8134257 - PLAQ.SUP. PLAQUE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
47 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/1/4/img/71414.jpg)
48 |
BUFFER/RUBBER OEM PIAGGIO 50 GILERA SMT, RCR 2018 >/DERBI SENDA 2018 >-AP8120712 More informationQuantity required : 1 |
||||||
|
49 |
AP8120598 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
|
50 |
Convoyeur G; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/5/img/71935.jpg)
51 |
SCREW BTR HEAD BOMBEE (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152268 More informationQuantity required : 15 |
||||||
|
52 |
AP8120708 - GUIDE-CABLE ADH.NOIR More informationQuantity required : 1 |
||||||
|
53 |
Couvre-str.selle D, noir |
||||||
|
54 |
Couvre-str.selle G, noir; |
||||||
|
54 |
Couvre-str.selle G, noir; |
||||||
|
55 |
AP8131733 - GRILLE CARENAGE D; More informationQuantity required : 1 |
||||||
|
56 |
Grille carénage G; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
57 |
WASHER ELASTIC (5) OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150450 More informationQuantity required : 7 |
||||||
|
58 |
Rivet anodisé bleu |
||||||
|
59 |
RESERVOIR HUILE |
