Vehicle Exploded View - GILERA RK 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

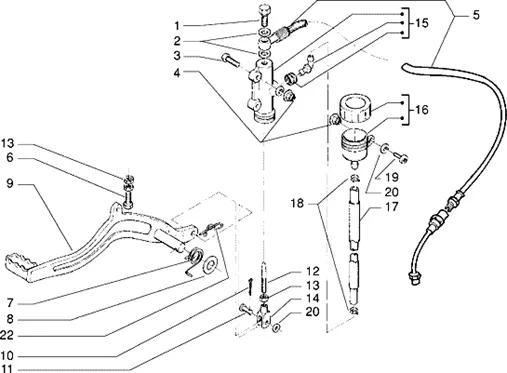

Suspensions-roues : T30 PEDALE-MAITRE CYLINDRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/663/RK_50_1998-2005_T30.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/0/img/66050.jpg)
1 |
SCREW BANJO FOR BRAKE OEM PIAGGIO COMMON A LA RANGE-265451 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/3/img/65723.jpg)
2 |
GASKET CUIVRE (10X16X1) BRAKE CALIPER OEM PIAGGIO COMMON A TOUTE LA RANGE-127927 More informationQuantity required : 1 |
||||||
3 |
VIS |
||||||
|
4 |
810511-NUT More informationQuantity required : 2 |
||||||
|
5 |
Canalisation freins |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/9/img/65639.jpg)
6 |
SCREW TH (6X16) OEM PIAGGIO COMMON A LA RANGE-031088 More informationQuantity required : 1 |
||||||
|
7 |
RESSORT |
||||||
|
8 |
RONDELLE |
||||||
|
9 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/2/img/63782.jpg)
10 |
GOUPILLE OEM PIAGGIO COMMON A LA RANGE-003208 More informationQuantity required : 1 |
||||||
|
11 |
|
||||||
|
12 |
BROCHE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
13 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106 More informationQuantity required : 2 |
||||||
|
14 |
329811 - FOURCHETTE More informationQuantity required : 1 |
||||||
|
15 |
POMPE FREIN |
||||||
|
16 |
RESERVOIR HUILE FR |
||||||
|
17 |
TUYAU |
||||||
|
18 |
COLLIER |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/8/img/65638.jpg)
19 |
SCREW TH (6X15) OEM PIAGGIO COMMON A LA RANGE-031087 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
20 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 2 |
