Vehicle Exploded View - GILERA RK 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

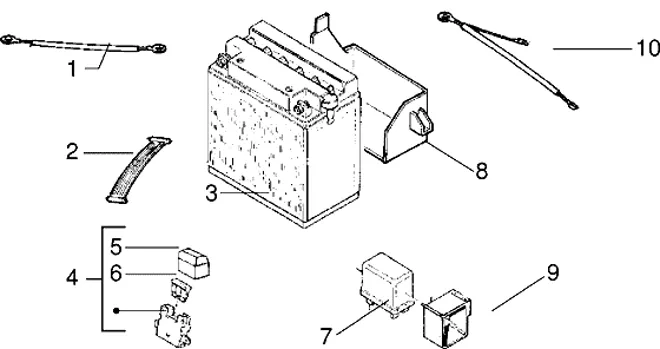

Connexions électriques : T37/A DISPOSITIFS ELECTRIQUES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/663/RK_50_1998-2005_T37_A.PNG)
1 |
CABLE CONNEXION |
||||||
|
2 |
BAGUE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/7/0/img/65970.jpg)
3 |
BATTERY 12V 4AH YB4L-B OEM PIAGGIO COMMON A LA RANGE-234390 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/6/0/3/img/77603.jpg)
4 |
DOOR FUSIBLES OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 1998 > 2005, 125 VESPA PX-290402 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/1/img/66241.jpg)
5 |
COVER BOX A FUSIBLE OEM PIAGGIO COMMON A LA RANGE-290404 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/4/img/66004.jpg)
6 |
BLADE FUSE STANDARD 7, 5A OEM PIAGGIO COMMON A LA RANGE-252945 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/3/img/67203.jpg)
7 |
RELAIS STARTER MOTOR MAXI SCOOTER OEM PIAGGIO 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250-300 ATLANTIC (12V-80A)-58115R More informationQuantity required : 1 |
||||||
|
8 |
942577-BRACKET RELAIS More informationQuantity required : 1 |
||||||
|
9 |
LOGEMENT BATTERIE |
||||||
|
10 |
CABLE BATTERIE |
