Vehicle Exploded View - GILERA RK 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

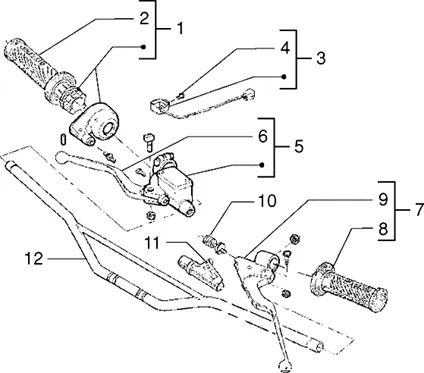

Guidon : T27 PIECES COMPOSANT LE GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/663/RK_50_1998-2005_T27.PNG)
1 |
812729 - MAITRE CYLINDRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/3/2/6/img/92326.jpg)
1 |
THROTTLE HANDLE "PIAGGIO GENUINE PART" GILERA 50 GSM, ZULU, SURFER H@K 1998>2004 -812528 More informationQuantity required : 1 |
||||||
|
2 |
812887 - LEVIER FREIN More informationQuantity required : 1 |
||||||
|
2 |
812529 - POIGNEE DROITE More informationQuantity required : 1 |
||||||
|
3 |
294514 - POUSSOIR DEMARREUR More informationQuantity required : 1 |
||||||
|
3 |
KIT ECROU |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/3/5/1/img/78351.JPG)
4 |
SOUFFLET/CAPUCHON BRAKE MASTER CYLINDER OEM PIAGGIO 125 PX VESPA-327145 More informationQuantity required : 1 |
||||||
|
4 |
VIS |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/9/img/67189.jpg)
5 |
INTERRUPTEUR LAMP STOP OEM PIAGGIO 50 NRG, ZIP, TYPHOON, LIBERTY, 125 X9, VESPA LXV, 250-300 VESPA GTV/APRILIA 50 SR H2O, 125 ATLANTIC, RS, SPORT-CITY/GILERA 50 STALKER-580953 More informationQuantity required : 1 |
||||||
|
5 |
812729 - MAITRE CYLINDRE More informationQuantity required : 1 |
||||||
|
6 |
812887 - LEVIER FREIN More informationQuantity required : 1 |
||||||
|
7 |
812526 - MANCHON GAUCHE More informationQuantity required : 1 |
||||||
|
8 |
812527 - POIGNEE G More informationQuantity required : 1 |
||||||
|
9 |
329574 - PORTE LEVIER CPLT G More informationQuantity required : 1 |
||||||
|
10 |
TENDEUR |
||||||
|
11 |
CACHE LEVIER |
||||||
|
12 |
GUIDON GSM |
