Vehicle Exploded View - GILERA RK 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

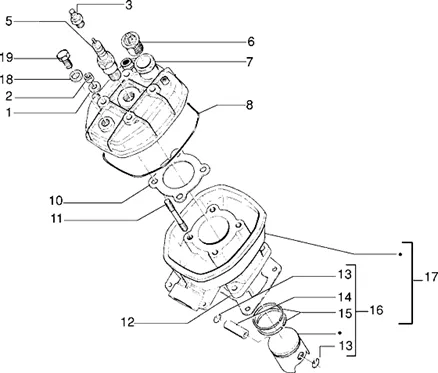

Moteur : T4 CULASSE-CYLINDRE-PISTON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/663/RK_50_1998-2005_T4.PNG)
1 |
319437 - RONDELLE More informationQuantity required : 4 |
||||||
|
2 |
ECROU DE GOUJON |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/7/0/img/66370.jpg)
3 |
SCREW OF BLEEDING BRAKE CALIPER OEM PIAGGIO COMMON A LA RANGE-430045 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/2/2/img/66522.jpg)
5 |
SPARK PLUG CHAMPION P2M OEM PIAGGIO RANGE SCOOTER 50 CC 1989 > 2005-438065 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/3/1/img/66631.jpg)
6 |
CALORSTAT/THERMOSTAT OEM DERBI 50 SENDA 2003 >/PIAGGIO 50 NRG, ZIP LIQUIDE/GILERA 50 RUNNER, DNA, SMT, RCR/APRILIA 50 RS, SR LIQUIDE-483395 More informationQuantity required : 1 |
||||||
|
7 |
4321764 - CULASSE EAGLET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/6/1/5/img/93615.jpg)
8 |
942134 - JOINT O-RING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/6/4/1/img/93641.jpg)
10 |
CYLINDER HEAD GASKET- "PIAGGIO GENUINE PART" GILERA 50 GSM, H@K, EAGLET 1995>1999 -942857 More informationQuantity required : 1 |
||||||
|
11 |
942636-STUD More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/6/4/3/img/93643.jpg)
12 |
942859 - JOINT D'EMBASE 0,3 More informationQuantity required : 1 |
||||||
|
12 |
942860-GASKET 0, 4 More informationQuantity required : 1 |
||||||
|
12 |
JOINT 0,5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/3/6/4/5/img/93645.jpg)
12 |
GASKET BAS DE CYLINDER 0. 6 OEM PIAGGIO EAGLET1998 > 2005-942862 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/8/3/img/65983.jpg)
13 |
CIRCLIPS SHAFT OF PISTON OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTEUR 50 CC 2T-239455 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/8/2/img/65982.jpg)
14 |
SHAFT OF PISTON OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-239404 More informationQuantity required : 1 |
||||||
|
15 |
942130 - SEGMENT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/5/9/4/img/78594.jpg)
16 |
PISTON COMPLETE (HAUT ENGINE GILARDINI) OEM PIAGGIO GILERA GSM, HAK, EAGLET, SURFER-4332984001 More informationQuantity required : 1 |
||||||
|
16 |
4332984002 - GROUPE PISTON 1ER C More informationQuantity required : 1 |
||||||
|
16 |
4332984003 - PISTON CPL More informationQuantity required : 1 |
||||||
|
16 |
4332984004 - PISTON More informationQuantity required : 1 |
||||||
|
17 |
GROUPE CYLINDRE CPLT |
||||||
|
18 |
RONDELLE |
||||||
|
19 |
VIS |
