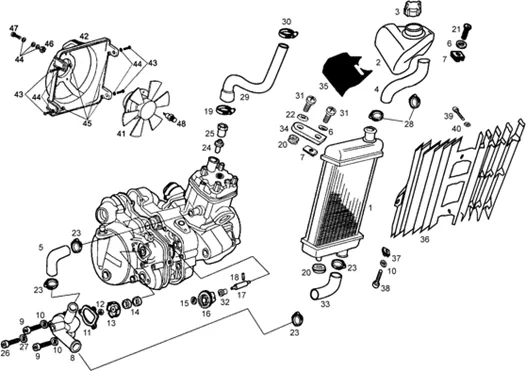

Vehicle Exploded View - GILERA RCR 50 1998-2005

	P2R reference	69934
	Maker reference	86193R

RADIATOR 50 A BOX OEM PIAGGIO 50 GILERA RCR, SMT 2006 > 2010/DERBI SENDA 2000 > 2010-86193R

	P2R reference	70290
	Maker reference	867122

RADIATOR OEM PIAGGIO 50 RX, SX APRILIA/SENDA R, SM X-TREM, X RACE DERBI 2005 > 2010-867122

	P2R reference	64859
	Maker reference	00H03802501

VASE D'EXPANSION OEM DERBI 50 SENDA 2000 > 2010/GILERA 50 SMT, RCR 1999 > 2005-00H03802501

	P2R reference	64857
	Maker reference	00H03802471

COOLANT TANK CAP "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2000>2005 -00H03802471

	P2R reference	64105
	Maker reference	00G03800601

00G03800601 - TUBE POMPE-RADIATEUR

	P2R reference	64844
	Maker reference	00H03801041

HOSE COOLING PUMP-CYLINDER OEM PIAGGIO 50 GILERA SMT, RCR 1998 > 2005/DERBI SENDA 2005 <-00H03801041

	P2R reference	63876
	Maker reference	00D01200171

WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference
	Maker reference	00H03800135

COUVERCLE DE POMPE D,EAU

	P2R reference	63614
	Maker reference	000020520515

SCREW BTR (5X15) OEM PIAGGIO COMMON A LA RANGE-00002052051

	P2R reference	69496
	Maker reference	847226

WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226

	P2R reference	64832
	Maker reference	00H03800141

GASKET FOR WATER PUMP COVER "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2004 -00H03800141

	P2R reference	69445
	Maker reference	847067

NUT SHAFT OF PUMP A WATER OEM DERBI 50 SENDA/GILERA 50 SMT-847067

	P2R reference	64833
	Maker reference	00H03800151

TURBINE OF PUMP A WATER OEM PIAGGIO GILERA 50 SMT, RCR, GSM, HAK, ZULU 1998 > 2005/DERBI SENDA 2005 <-00H03800151

	P2R reference	64873
	Maker reference	00H03810211

GASKET OF WATER PUMP OEM PIAGGIO 50 GILERA SMT, RCR 1998 > 2003/DERBI SENDA 2005 < (VENDU A L UNITE)-00H03810211

	P2R reference	69495
	Maker reference	847224

WASHER DE SCREW PLATE D'APPUIS CLUTCH OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2000 >/APRILIA 50 SX, RX, RS-847224

	P2R reference	64837
	Maker reference	00H03800381

SPROCKET OF PUMP A OIL OEM DERBI 50 SENDA 2005 </GILERA 50 SMT, RCR, GSM, HAK, ZULU 2005 <-00H03800381

	P2R reference	64834
	Maker reference	00H03800161

WATER PUMP AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR E2, GSM, H@K, ZULU -00H03800161

	P2R reference	63740
	Maker reference	000530300005

00053030000 - GOUDILLE

	P2R reference	64839
	Maker reference	00H03800451

00H03800451 - COLLIER

	P2R reference	63673
	Maker reference	000089150205

RUBBER MOUNT DE RADIATOR OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA RS 2006 > 2011, SX, RX 2006 >-00008915020

	P2R reference	63704
	Maker reference	000121616005

SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600

	P2R reference	63883
	Maker reference	00D01500552

WASHER SPECIALE OEM PIAGGIO COMMON A LA RANGE-00D01500552

	P2R reference	64852
	Maker reference	00H03801751

CLAMP HOSE (22. 8) OEM PIAGGIO COMMON A LA RANGE-00H03801751

	P2R reference
	Maker reference	00H03800431

THERMOSTAT

	P2R reference
	Maker reference	00H03810421

ECROU

	P2R reference	63613
	Maker reference	000020512515

00002051251-SCREW A HEAD CREUSE 5M80X12 N

	P2R reference	64838
	Maker reference	00H03800441

WASHER PLATE OEM PIAGGIO COMMON A LA RANGE-00H03800441

	P2R reference	64108
	Maker reference	00G03801701

CLAMP HOSE OEM PIAGGIO COMMON A LA RANGE

	P2R reference	64863
	Maker reference	00H03804021

COOLANT HOSE - HEAD TO EXPANSION TANK "PIAGGIO GENUINE PART" GILERA SMT, RCR 1998>2005 -00H03804021

	P2R reference	63670
	Maker reference	000082045005

00008204500-CLAMP COBRA 21/8 W4

	P2R reference	63752
	Maker reference	000920612145

00092061214-SCREW A HEAD RONDE A FENTES C

	P2R reference	64836
	Maker reference	00H03800231

BUSH FOR WTER PUMP AXLE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR E2, GSM, HAK, ZULU -00H03800231

	P2R reference	64854
	Maker reference	00H03802031

HOSE/HOSE DE COOLING (PUMP-RADIATOR) OEM DERBI 50 SENDA 2000 > 2010/GILERA 50 SMT, RCR 2006 > 2010-00H03802031

	P2R reference	64024
	Maker reference	00G02200692

BRACKET DE RADIATOR OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2000 > 2017/APRILIA SX, RX 2006 > 2017-00G02200692

	P2R reference	64851
	Maker reference	00H03801711

00H03801711-ADHESIF

	P2R reference	151094
	Maker reference	2B004936

GRILLE DE RADIATOR OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006 >-2B005365

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	63702
	Maker reference	000121515005

00012151500-SCREW A HEAD RONDE A FENTES C

	P2R reference	63687
	Maker reference	000111413005

SCREW PARKER (4, 8X13) CRUCIFORME OEM COMMON A LA RANGE-00011141300

	P2R reference	69480
	Maker reference	847181

WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181

	P2R reference	70290
	Maker reference	867122

RADIATOR OEM PIAGGIO 50 RX, SX APRILIA/SENDA R, SM X-TREM, X RACE DERBI 2005 > 2010-867122

	P2R reference
	Maker reference	00H06803031

COUVERCLE DE VENTILATEUR SD-R 00

	P2R reference
	Maker reference	ODN00000031040

RONDELLE

	P2R reference
	Maker reference	00H06800061

DOUILLE

	P2R reference
	Maker reference	ODN00000023040

Ecrou

	P2R reference	63563
	Maker reference	000000024205

00000002420 - VIS

	P2R reference	64106
	Maker reference	00G03800741

SONDE DECLANCHEMENT DE VENTILATEUR OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2009/DERBI SENDA 2000 < 2010/APRILIA SX, RX 2006 > 2009-00G03800741
