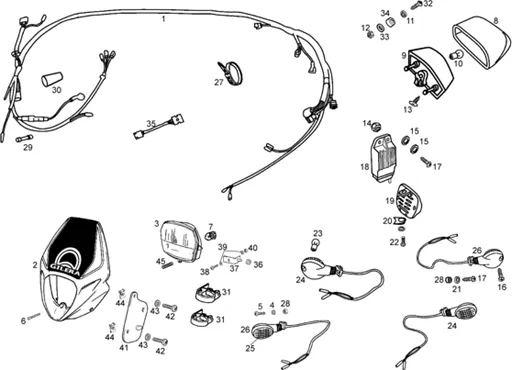

Connexions électriques : T21 INSTALLATION ELECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/664/RCR_50_1998-2005_T21.PNG)
1 |
GROUPE CABLE |
|||||||||
|
2 |
00H02236371 - COUVERCLE PHARE More informationQuantity required : 1 |
|||||||||
|
2 |
00H02236372 - TETE PHARE More informationQuantity required : 1 |
|||||||||
|
2 |
00H02235374 - COUVERCLE DE FHARE More informationQuantity required : 1 |
|||||||||
|
3 |
OPTIQUE COMPLETE |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/6/img/63726.jpg)
4 |
WASHER PLATE (6X12X1. 7) OEM PIAGGIO COMMON A LA RANGE-00031106000 More informationQuantity required : 1 |
|||||||||
|
5 |
00012063000 - VIS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/9/2/img/63692.jpg)
6 |
SCREW CRUCIFORME (4X50) OEM PIAGGIO COMMON A LA RANGE-00012045000 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/4/2/img/65942.jpg)
7 |
AMPOULE/LAMPE 12V 35/35W S2 OEM PIAGGIO COMMON A LA RANGE-219528 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/8/3/img/64383.jpg)
8 |
LAMP REAR OEM DERBI 50 SENDA 2006 </GILERA 50 SMT, RCR 2006 > 2010-00H01006321 More informationQuantity required : 1 |
|||||||||
|
9 |
LAMP REAR OEM DERBI 50 SENDA 2006 </GILERA 50 SMT, RCR 2006 > 2010-00H01006321 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/6/6/img/64366.jpg)
10 |
AMPOULE/LAMPE 12V 21/5W BAY15D OEM PIAGGIO COMMON A LA RANGE-00H01000371 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/8/4/0/img/64840.jpg)
11 |
WASHER PLATE (5, 3X15X1) OEM PIAGGIO COMMON A LA RANGE-00H03800722 More informationQuantity required : 1 |
|||||||||
|
12 |
|
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/5/7/img/63957.jpg)
13 |
SCREW - FOR TAIL LAMP LENS "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR 2006>2010 -00G01001571 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/8/6/img/63586.jpg)
14 |
NUT FLANGE (6X1. 00) OEM PIAGGIO COMMON A LA RANGE-00000021060 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/6/img/63786.jpg)
15 |
WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001 More informationQuantity required : 1 |
|||||||||
|
16 |
00011021300-SCREW More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/0/4/img/63704.jpg)
17 |
SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/8/8/img/70888.jpg)
18 |
REGULATEUR 50 A BOX OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2000 > 2017/APRILIA RS 2006 > 2010, 50 RS4 2011 > 2017, RX, SX 2006 > 2017 (RED)-898891 More informationQuantity required : 1 |
|||||||||
|
19 |
00F01001311 - ZLAXON COMPLET More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
20 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
21 |
WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/9/6/img/63696.jpg)
22 |
SCREW CRUCIFORME (6X12) OEM PIAGGIO COMMON A LA RANGE-00012061200 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
23 |
AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/9/4/img/64594.jpg)
24 |
FLASHER-REAR-RIGHT/FRONT-LEFT "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 2000>2009 -00H01703301 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/9/7/img/64597.jpg)
24 |
FRONT RIGHT INDICATOR/REAR LEFT ROND VERRE WHITE OEM DERBI 2011 <-00H01704311 More informationQuantity required : 2 |
|||||||||
|
25 |
00H01704071-GLACE INDICATOR ARRIEGE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/9/5/img/64595.jpg)
26 |
REAR LEFT INDICATOR/FRONT RIGHT OEM DERBI 50 SENDA 2004 > 2010/GILERA 50 SMT, RCR 2003 > 2010-00H01703391 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/9/8/img/64598.jpg)
26 |
FRONT LEFT INDICATOR/REAR RIGHT ROND VERRE WHITE OEM DERBI 2011 <-00H01706021 More informationQuantity required : 2 |
|||||||||
|
27 |
ATTACHE CABLE RISLAN DEMONTABLE OEM PIAGGIO APRILIA RS 50 2006 > 2010, RX-SX 50 2006 > 2017/GILERA SMT 50 1998 > 2017-00D00900531 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
28 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060 More informationQuantity required : 1 |
|||||||||
|
29 |
00G01000911-FUSIBLE 4 AH. More informationQuantity required : 1 |
|||||||||
|
30 |
PROTECTION |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/9/2/4/img/64924.jpg)
31 |
HOSE CLAMP "PIAGGIO GENUINE PART" GILERA SMT-RCR 1998>2005 - 00H04607841 More informationQuantity required : 1 |
|||||||||
|
32 |
00004053500 - VIS A TETE ALLEN 5M80X50 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/7/6/img/64376.jpg)
33 |
SPACER OF REAR LIGHT OU BRAKE MASTER CYLINDER REAR OEM PIAGGIO 50 GILERA SMT 2006/DERBI SENDA 2000 > 2010/APRILIA RS 2006 > 2010-00H01002821 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/5/1/img/65051.jpg)
34 |
RUBBER MOUNT OF FITTING KIT LAMP REAR OEM PIAGGIO GILERA 50 50 SMT, RCR/DERBI 50 SENDA 2000 > 2010-00H06800461 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/9/9/7/img/64997.jpg)
35 |
CENTRE CLIGNOTANTE OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2000 > 2017/APRILIA 50 SX, RX 2006 > 2017-00H05700481 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/9/9/9/img/64999.jpg)
36 |
RUBBER GUIDE-CABLE OEM PIAGGIO COMMON A LA RANGE-00H05701061 More informationQuantity required : 1 |
|||||||||
|
37 |
00H01000081-BRACKET More informationQuantity required : 1 |
|||||||||
|
38 |
VIS |
|||||||||
|
39 |
RONDELLE |
|||||||||
|
40 |
Ecrou |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/4/1/img/64541.jpg)
41 |
BRACKET HEAD OF FORK OEM PIAGGIO 50 GILERA SMT, RCR 2006/DERBI SENDA 2000 > 2010/APRILIA SX, RX 2006 >-00H01502741 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/9/3/img/63693.jpg)
42 |
SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A LA RANGE-00012051200 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/0/img/69480.jpg)
43 |
WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181 More informationQuantity required : 1 |
|||||||||
|
44 |
00026005000-NUT HEXAG. A/FLANGE 5M80 D6923 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/8/7/img/64687.jpg)
45 |
SPRING REGLAGE DE HEADLAMP OEM PIAGGIO 50 GILERA SMT 2011 > 2017/DERBI SENDA 2010 > 2017-00H02302501 More informationQuantity required : 1 |
|||||||||
All the exploded views of this vehicle
-
