Vehicle Exploded View - GILERA RCR 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

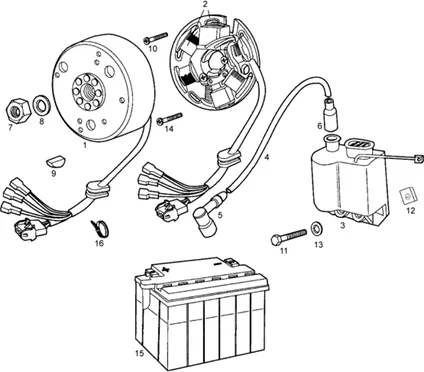

Connexions électriques : T10 VOLANT MEGNETIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/664/RCR_50_1998-2005_T10.PNG)
1 |
00H03307011 - VOLANT MAGNETIQUE More informationQuantity required : 1 |
||||||
|
2 |
00H03303701 - STATOR More informationQuantity required : 1 |
||||||
|
3 |
00H03331171 - BOBINE AUTE TENSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/8/img/65668.jpg)
4 |
CABLE HAUTE TENSION OEM PIAGGIO COMMON A TOUTE LA RANGE-080341 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/8/3/img/64083.jpg)
5 |
00G03301271-MANIFOLD DE SPARK PLUG More informationQuantity required : 1 |
||||||
|
6 |
00F03300731-CAPUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/0/3/img/69503.jpg)
7 |
NUT IGNITION OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2006 >/APRILIA SX, RX, RS 2006 >, RS4 2011 >-847235 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/2/7/img/151727.jpg)
8 |
WASHER ROTOR IGNITION OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2006 >/APRILIA 50 SX, RX, RS-1A011675 More informationQuantity required : 1 |
||||||
|
8 |
WASHER ROTOR IGNITION OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2006 >/APRILIA 50 SX, RX, RS-1A011675 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/8/img/69488.jpg)
9 |
CLAVETTE DE VOLANT IGNITION ET CLUTCH OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA RS, RX, SX 2006 >, RS4 2011 >-847215 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/0/1/img/69501.jpg)
10 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 -847233- More informationQuantity required : 1 |
||||||
|
11 |
00012162000-BOLT HEAD HEX. 5M80X15 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
12 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
13 |
WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171 More informationQuantity required : 1 |
||||||
|
14 |
VIS |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/7/0/img/65970.jpg)
15 |
BATTERY 12V 4AH YB4L-B OEM PIAGGIO COMMON A LA RANGE-234390 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/9/9/img/63899.jpg)
16 |
HOSE CLAMP NYLON TYPE RILSAN (290X4. 8) OEM PIAGGIO COMMON A LA RANGE-00F00900531 More informationQuantity required : 1 |
