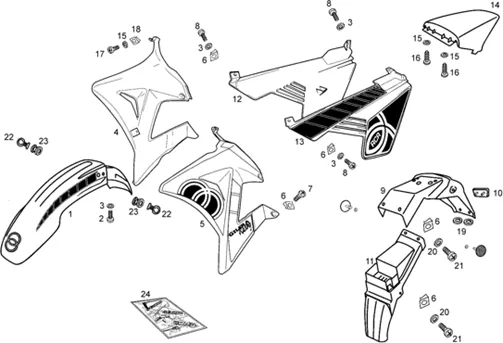

Vehicle Exploded View - GILERA RCR 50 1998-2005

	P2R reference	64300
	Maker reference	00H00712431

00H00712431 - PARAFANGO ANT.ROSSO SDR GI

	P2R reference	64301
	Maker reference	00H00712432

FRONT MUDGUARD - "PIAGGIO GENUINE PART" GILERA 50 RCR BLACK -00H00712432-

	P2R reference
	Maker reference	00H00712435

GARDE BOUE AV.

	P2R reference	63704
	Maker reference	000121616005

SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600

	P2R reference	63876
	Maker reference	00D01200171

WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171

	P2R reference	64907
	Maker reference	00H04429801

00H04429801 - COUVERCLE LAT DT ROUGE

	P2R reference	64908
	Maker reference	00H04429802

00H04429802 - COUVERTURE LAT DT NOIRE

	P2R reference
	Maker reference	00H04429805

COUVERTURE LAT. ORANGE. SR GIL

	P2R reference	64911
	Maker reference	00H04429881

00H04429881 - COUVERTURE LAT.SX ROUGE DECO NOIR BLANC

	P2R reference	64912
	Maker reference	00H04429882

00H04429882 - COUVERCLE LAT SX GRIS DECO NOIR JAUNE

	P2R reference	64915
	Maker reference	00H04429885

00H04429885 - COUVERTURE LAT.G NOIRE DECO ORANGE

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	63992
	Maker reference	00G01503701

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2006>2010 -00G01503701

	P2R reference	63704
	Maker reference	000121616005

SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600

	P2R reference	64299
	Maker reference	00H00712341

MUD FLAP/DOOR PLATE OEM DERBI 50 SENDA 2000 < 2010/GILERA 50 SMT, RCR 2006 > 2010-00H00712341

	P2R reference	64118
	Maker reference	00G04400752

REAR REFLECTOR "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR 1998>2009 -00G04400752

	P2R reference	64293
	Maker reference	00H00705121

REAR MUDGUARD INNER OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00H00705121

	P2R reference	64265
	Maker reference	00H00544691

00H00544691 - COUVERTURE LAT.DR. ROUGE SDR GI

	P2R reference	64266
	Maker reference	00H00544692

00H00544692 - COPERTURA LAT.DX.NERO SDR GI

	P2R reference
	Maker reference	00H00544695

COPERTURA LAT.DX.NARJ.SR GI

	P2R reference	64271
	Maker reference	00H00544702

FRONT SIDE COVER - LEFT - "PIAGGIO GENUINE PART" GILERA 50 RCR 2006>2010 -00H00544702

	P2R reference	64274
	Maker reference	00H00544705

00H00544705 - COPERTURA LAT SX.NARJ.SR GIL

	P2R reference
	Maker reference	ODN00H00544701

PLAQUE LATERAL GAU.

	P2R reference	64958
	Maker reference	00H04923091

00H04923091 - CARENAGE DE SELLE ROUGE DR

	P2R reference
	Maker reference	00H04923094

CARENAGE DE SELLE

	P2R reference	64959
	Maker reference	00H04923092C

00H04923092C - CARENAGE SELLE NOIR DR

	P2R reference	69496
	Maker reference	847226

WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226

	P2R reference	63681
	Maker reference	000110514015

SCREW AUTOTARAUDEUSE (5X14) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-00011051401

	P2R reference	63703
	Maker reference	000121520005

SCREW CRUCIFORME (5X80) OEM PIAGIO COMMON A LA RANGE-00012152000

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	69844
	Maker reference	861239

WASHER DE HEAD OF FORK D5 INOX OEM PIAGGIO 50 APRILIARS 2006 > 2010/DERBI 50 SENDA 2000 >/GILERA SMT, RCR 2006 >-861239

	P2R reference	63786
	Maker reference	004020600015

WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001

	P2R reference	63704
	Maker reference	000121616005

SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600

	P2R reference	64668
	Maker reference	00H02201591

GUIDE CABLE DE FLEXIBLE OF BRAKE FRONT OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2010/APRILIA 50-125 SX, RX-00H02201591

	P2R reference	63881
	Maker reference	00D01500021

RUBBER GUIDE-CABLE/RUBBER MOUNT OEM DERBI 50 SENDA 2000 > 2017/GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX-00D01500021

	P2R reference	64976
	Maker reference	00H05149651

00H05149651 - KIT PLAQUETTES SR GIL ROUGE DRAGON

	P2R reference	64977
	Maker reference	00H05149652

00H05149652 - KIT DECALQUE SR NOIR

	P2R reference	64978
	Maker reference	00H05149653

00H05149653 - KIT DECAL. SR GIL ORANGE
