Vehicle Exploded View - PIAGGIO VU PORTER PICKUP 1400 Porter Pick 1400 cc Diesel 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

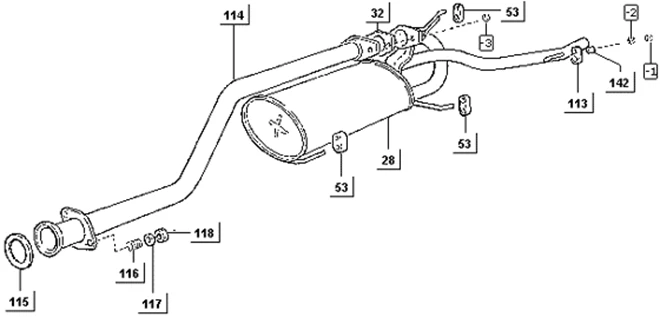

Moteur : T17-02 SILENCIEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/959/Porter_Pick_1400_cc_Diesel_1998-2005_T17-02.png)
1 |
9004209129000 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/9/1/img/110491.jpg)
2 |
SCREW TH (8X40) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-D9161160840 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/4/9/img/110349.jpg)
3 |
NUT FLANGE SILENCER OEM PIAGGIO PORTER 1998 > 2020-9004179187000 More informationQuantity required : 2 |
||||||
|
28 |
262796 SILENCER ACHAPP. More informationQuantity required : 1 |
||||||
|
28 |
263833 - POT ECHAP BIG DECK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/4/5/9/img/118459.jpg)
32 |
GASKET EXHAUST OEM PIAGGIO PORTER 1998 > 2020-B005007 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/4/1/9/img/113419.jpg)
53 |
RUBBER MOUNT SILENCER EXHAUST OEM PIAGGIO PORTER 2020 <-1756787Z03000 More informationQuantity required : 1 |
||||||
|
114 |
569739 - PIPE A.EXHAUST More informationQuantity required : 1 |
||||||
|
115 |
262694 GASKET More informationQuantity required : 1 |
||||||
|
116 |
262695 - RESSORT More informationQuantity required : 1 |
||||||
|
117 |
262693 - ARRET. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/9/img/65379.jpg)
118 |
NUT FLANGE M8 MOUNTING EXHAUST OEM PIAGGIO COMMON ALA RANGE-015341 More informationQuantity required : 1 |
