Vehicle Exploded View - PIAGGIO VU PORTER PICKUP 1400 Porter Pick 1400 cc Diesel 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

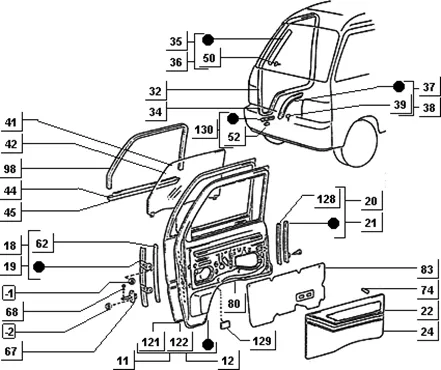

Châssis : T67-51 PORTE AV. ET GLACE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/959/Porter_Pick_1400_cc_Diesel_1998-2005_T67-51.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/6/8/img/109868.jpg)
1 |
SCREW TH (6X10) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-9162140610000 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/6/4/img/109864.jpg)
2 |
SCREW TH 6X14) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-9162140614000 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/5/6/5/img/122565.jpg)
11 |
DOOR FRONT RIGHT OEM PIAGGIO PORTER 2020 <-6700187Z01000 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/4/2/9/img/122429.jpg)
12 |
DOOR FRONT LEFT OEM PIAGGIO PORTER 2020 <-6700287Z01000 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/3/5/9/img/116359.jpg)
18 |
GUIDE VITRE INNER PORTIERE FRONT OEM PIAGGIO PORTER-D6740187Z01 More informationQuantity required : 1 |
|||||||||
|
19 |
GUIDE VITRE INNER PORTIERE FRONT OEM PIAGGIO PORTER-D6740187Z01 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/9/1/6/img/115916.jpg)
20 |
GUIDE VITRE DE PORTIERE RIGHT OEM PIAGGIO PORTER 2020 <-6740387Z010006 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/1/2/4/img/116124.jpg)
21 |
GUIDE VITRE DE PORTIERE LEFT OEM PIAGGIO PORTER 2020 <-D6740487Z01 More informationQuantity required : 1 |
|||||||||
22 |
6761087Z04030 - PANNEAU More informationQuantity required : 1 |
|||||||||
|
22 |
6761087Z01030 - PANNEAU More informationQuantity required : 1 |
|||||||||
|
22 |
6761087Z02030 - PANNEAU More informationQuantity required : 1 |
|||||||||
|
24 |
6762087Z02030 - PANNEAU More informationQuantity required : 1 |
|||||||||
|
24 |
6762087Z04030 - PANNEAU More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/8/8/9/img/120889.jpg)
32 |
GASKET OF DOOR FRONT RIGHT OU LEFT OEM PIAGGIO PORTER-6786187Z01000 More informationQuantity required : 1 |
|||||||||
|
34 |
GASKET OF DOOR FRONT RIGHT OU LEFT OEM PIAGGIO PORTER-6786187Z01000 More informationQuantity required : 1 |
|||||||||
|
35 |
1E002149 GASKET More informationQuantity required : 1 |
|||||||||
|
35 |
|
|||||||||
|
36 |
|
|||||||||
|
36 |
6821487502000 - JOINT More informationQuantity required : 1 |
|||||||||
|
37 |
1E002152 GASKET More informationQuantity required : 1 |
|||||||||
|
38 |
1E002152 GASKET More informationQuantity required : 1 |
|||||||||
|
39 |
6786797211000 CLAMP More informationQuantity required : 11 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/2/0/5/img/121205.jpg)
41 |
VITRE DE DOOR FRONT RIGHT OEM PIAGGIO PORTER-B007338 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/2/4/3/img/121243.jpg)
42 |
VITRE DE DOOR FRONT LEFT OEM PIAGGIO PORTER-B007339 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/4/0/8/img/115408.jpg)
44 |
GASKET/LECHE VITRE EXTERIEUR RIGHT OEM PIAGGIO PORTER 1992 > 2020-2608516 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/4/8/6/img/115486.jpg)
45 |
GASKET/LECHE VITRE EXTERIEUR LEFT OEM PIAGGIO PORTER 1992 > 2020-2608586 More informationQuantity required : 1 |
|||||||||
|
50 |
6786787Z02000 - CLIP SX ** More informationQuantity required : 16 |
|||||||||
|
50 |
6786887Z02000 - CLIP DX More informationQuantity required : 16 |
|||||||||
|
50 |
6786887502000 CLAMP More informationQuantity required : 16 |
|||||||||
|
52 |
6786797211000 CLAMP More informationQuantity required : 6 |
|||||||||
|
62 |
GUIDE VITRE INNER PORTIERE FRONT OEM PIAGGIO PORTER-D6740187Z01 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/0/6/2/img/116062.jpg)
67 |
TIRAN DE DOOR FRONT OEM PIAGGIO PORTER, CARGO 2020 <-6861087Z01000 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/9/7/7/img/110977.jpg)
68 |
SPINDLE PIVOT DE PORTIERE OEM PIAGGIO PORTER 2020 <-D6861787Z01 More informationQuantity required : 2 |
|||||||||
|
74 |
CLIP FOR DOOR PANEL "PIAGGIO GENUINE PART" PORTER -6777187Z01000 More informationQuantity required : 20 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/7/6/5/0/img/207650.jpg)
74 |
AGRAFE DE PANEL DE DOOR OEM PIAGGIO PORTER-6777187Z010006 More informationQuantity required : 20 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/4/3/9/img/115439.jpg)
80 |
GASKET/LECHE VITRE INNER OEM PIAGGIO PORTER 2020 <-2608506 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/4/5/6/img/115456.jpg)
83 |
PROTECTOR PLASTIQUE INTERIEURE DOOR FRONT RIGHT OEM PIAGGIO PORTER 2020 <-6783187Z01000 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/9/6/3/img/114963.jpg)
83 |
PROTECTOR PLASTIQUE INTERIEURE DOOR FRONT LEFT OEM PIAGGIO PORTER 2020 <-6783287Z01000 More informationQuantity required : 1 |
|||||||||
|
98 |
RIGHT SIDE WINDOW GASKET "PIAGGIO GENUINE PART" PORTER -261077 - More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/6/8/8/1/img/176881.jpg)
98 |
GASKET ENTOURAGE VITRE DE DOOR FRONT LEFT OEM PIAGGIO PORTER 1998 > 2020-2610786 More informationQuantity required : 1 |
|||||||||
|
98 |
GASKET ENTOURAGE VITRE DE DOOR FRONT LEFT OEM PIAGGIO PORTER 1998 > 2020-2610786 More informationQuantity required : 1 |
|||||||||
|
121 |
6701187Z01000 PANEL More informationQuantity required : 1 |
|||||||||
|
122 |
6701287Z01000 PANEL More informationQuantity required : 1 |
|||||||||
|
128 |
6241787Z01000 - JOINT More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/5/1/5/img/110515.jpg)
129 |
BUFFER GARNITURE PORTIERE OEM PIAGGIO PORTER 2020 <-6781187Z01000 More informationQuantity required : 2 |
|||||||||
|
130 |
1E002151 GASKET More informationQuantity required : 2 |
|||||||||
